SN5NPM1A6I4M0

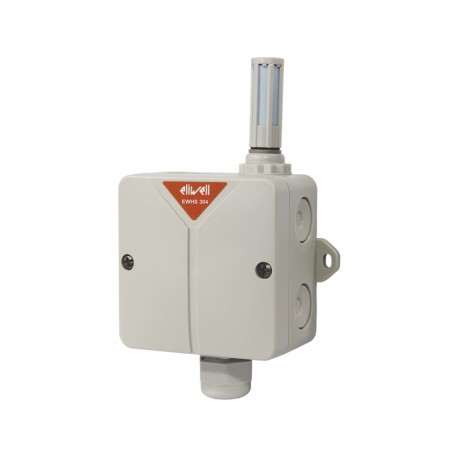

SN5NPM1A6I4M0 ELIWELL EWHS 304 Probe RH 0..100% RH 4...20mA Electronic controls for automation
$0.00USD
3366 in stock
Key Specifications
(MOISTURE PROBES - TEMPERATURE):EWHS284
Model (MOISTURE PROBES - TEMPERATURE):EWHS 304
POWER (MOISTURE PROBES - TEMPERATURE):9...28Vc
SETUP (MOISTURE PROBES - TEMPERATURE):Use the clip supplied with the probe
Supplier Information
ELIWELL
Products: 982
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| (MOISTURE PROBES - TEMPERATURE) | EWHS284 |
| Model (MOISTURE PROBES - TEMPERATURE) | EWHS 304 |
| POWER (MOISTURE PROBES - TEMPERATURE) | 9...28Vc |
| SETUP (MOISTURE PROBES - TEMPERATURE) | Use the clip supplied with the probe |
| Reference (MOISTURE PROBES - TEMPERATURE) | SN5NPM1A6I4M0 |
| AIR FILTER (MOISTURE PROBES - TEMPERATURE) | network of metallic thread |
| DIMENSIONS (MOISTURE PROBES - TEMPERATURE) | 103 x 25mm |
| CONSUMPTION (MOISTURE PROBES - TEMPERATURE) | 20mA max |
| MAXIMUM LOAD (MOISTURE PROBES - TEMPERATURE) | 250 Ohm |
| HUMIDITY SENSOR (MOISTURE PROBES - TEMPERATURE) | resistive |
| CONNECTION CABLE (MOISTURE PROBES - TEMPERATURE) | 1m |
| ROOM TEMPERATURE (MOISTURE PROBES - TEMPERATURE) | -10...60°C |
| FIELD TEMPERATURE (MOISTURE PROBES - TEMPERATURE) | - |
| Field Measurement (MOISTURE PROBES - TEMPERATURE) | 0...100 RH% |
| TEMPERATURE SENSOR (MOISTURE PROBES - TEMPERATURE) | - |
| DEGREE OF ISOLATION (MOISTURE PROBES - TEMPERATURE) | IP54 |
| ELECTRICAL CONNECTIONS (MOISTURE PROBES - TEMPERATURE) | Cable bipolar in PVC |
| COMPENSATIONTEMPERATURE (MOISTURE PROBES - TEMPERATURE) | - |
| FIELD OF HUMIDITY MEASUREMENT (MOISTURE PROBES - TEMPERATURE) | 15...90% RH |
| RECOVERY TIME OF THE SATURATION (MOISTURE PROBES - TEMPERATURE) | 360 sec |
| TEMPERATURE STORAGE TEMPERATURE (MOISTURE PROBES - TEMPERATURE) | -20...70°C |
| NUMBER OF CONDUCTORS TOCONNECTION: (MOISTURE PROBES - TEMPERATURE) | 2 (blue: power;brown: output) |
| OUTPUT CURRENT OF HUMIDITY MEASUREMENT (MOISTURE PROBES - TEMPERATURE) | 4 (0%)...20mA (100%) |
| ACCURACY OF HUMIDITY MEASUREMENT (AT 23°C) (MOISTURE PROBES - TEMPERATURE) | ±5% RH (in the interval 15...90% RH) |
| OUTPUT CURRENT OF THE MEASUREMENTTEMPERATURE (MOISTURE PROBES - TEMPERATURE) | - |
| RESPONSE TIME IN CONSTANT CONDITIONS (63%) AT 23°C (MOISTURE PROBES - TEMPERATURE) | 60 sec |
| ACCURACY OF MEASUREMENT OF THETEMPERATURE (TO 0°C AND 23°C) (MOISTURE PROBES - TEMPERATURE) | - |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
The moisture probes of the series EWHS are sensors built to connect to measuring instruments of humidity and humidity/temperature are characterized by their high precision.
