In Stock Hot Product
SMP5200000400

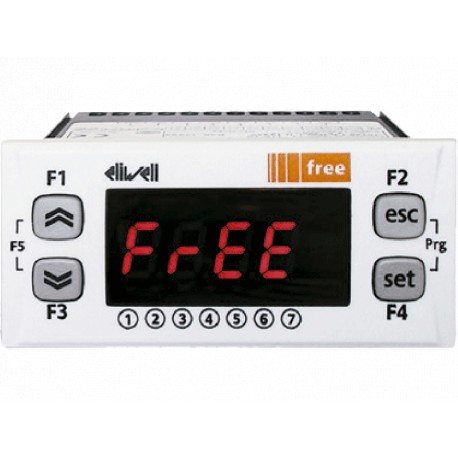

SMP5200000400 ELIWELL FREESMART SMP 5200
$0.00USD
3741 in stock
Key Specifications
(PROGRAMMABLE CONTROLS):SMP5200/5500
D. O (PROGRAMMABLE CONTROLS):5
Model (PROGRAMMABLE CONTROLS):SMP5200
Power (PROGRAMMABLE CONTROLS):12...24V~/ 24Vc
Supplier Information
ELIWELL
Products: 982
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| (PROGRAMMABLE CONTROLS) | SMP5200/5500 |
| D. O (PROGRAMMABLE CONTROLS) | 5 |
| Model (PROGRAMMABLE CONTROLS) | SMP5200 |
| Power (PROGRAMMABLE CONTROLS) | 12...24V~/ 24Vc |
| Format (PROGRAMMABLE CONTROLS) | Panel 74x32 |
| Probes (PROGRAMMABLE CONTROLS) | 3 NTC / D. I. + 2 NTC/ D. I. / 4...20 mA / 0-10V - 0-5V / 0-1V |
| Display (PROGRAMMABLE CONTROLS) | 4 digits, 7 segments and 18 icons |
| Reference (PROGRAMMABLE CONTROLS) | SMP5200000400 |
| Connectivity (PROGRAMMABLE CONTROLS) | TTL (ModBus Slave and Micronet Slave) Models /S RS485 (ModBus Slave and Micronet Slave) on-board LAN connection to remote terminal SKP/ SKW or Expansion |
| Analog inputs (PROGRAMMABLE CONTROLS) | 5 in total, of which3 NTC / D. I.2 x NTC/ D. I. / 4...20 mA / 0-10V - 0-5V / 0-1V |
| Analog outputs (PROGRAMMABLE CONTROLS) | 5 in total, of which2 PWM2 0-10V (only for models 5500)1 of 4...20 mA / 0...20 mA (only for models 5500) |
| Digital inputs (PROGRAMMABLE CONTROLS) | 6 voltage free |
| Supply voltage (PROGRAMMABLE CONTROLS) | 12 Vac/vdc, 24 Vac/vdc |
| Digital outputs (PROGRAMMABLE CONTROLS) | 5 x 2A 230 V~1 Open-Collector (activation external relay) |
| Need Accessories (PROGRAMMABLE CONTROLS) | If |
| Clock (only models /C) RTC (PROGRAMMABLE CONTROLS) | If |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
FREE Smart allows to obtain the maximum performance with extremely compact dimensions.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
