SMKDSN 1,5/11 BD:2-22

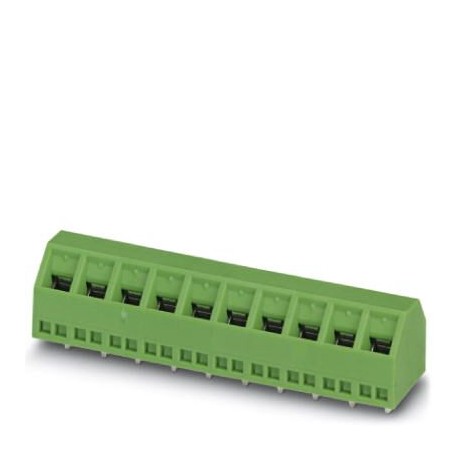

SMKDSN 1,5/11 BD:2-22 1834083 PHOENIX CONTACT PCB terminal block, nominal current: 13.5 A, nom. voltage: 400..
$0.00USD
3127 in stock
Key Specifications
GTIN:4046356954495
Orderkey:1834083
(Drawings):
Packing unit:1
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356954495 |
| Orderkey | 1834083 |
| (Drawings) | |
| Packing unit | 1 |
| Pitch (Drawings) | 5 mm |
| ETIM 4.0 (eCl@ss) | EC002643 |
| ETIM 5.0 (eCl@ss) | EC002643 |
| ETIM 6.0 (eCl@ss) | EC002643 |
| ETIM 7.0 (eCl@ss) | EC002643 |
| UNSPSC 13.2 (ETIM) | 39121432 |
| UNSPSC 18.0 (ETIM) | 39121432 |
| UNSPSC 19.0 (ETIM) | 39121432 |
| UNSPSC 20.0 (ETIM) | 39121432 |
| UNSPSC 21.0 (ETIM) | 39121432 |
| Custom tariff number | 85369010 |
| (Ambient conditions) | Test passed |
| Pin layout (Drawings) | Linear pinning |
| Screw thread (Drawings) | M3 |
| Mounting type (Drawings) | Wave soldering |
| Dry heat (Vibration test) | 168 h/100°C |
| Note (Connection capacity) | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Humid heat (Vibration test) | 48 h/25 °C/92% |
| Number of levels (Drawings) | 1 |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Connection method (Drawings) | Screw connection with tension sleeve |
| Note (Packaging information) | For safe conductor connection, always adhere to a defined tightening torque. Particularly in the case of PCB terminal blocks with two or three positions, the individual solder pin for each contact point cannot compensate for this. That is why the terminal blocks must be supported during conductor connection (held with one hand, support on the housing). |
| Range of articles (Drawings) | SMKDSN 1,5 |
| Test result (Vibration test) | Test passed |
| eCl@ss 5.1 (Classifications) | 27261100 |
| eCl@ss 6.0 (Classifications) | 27261100 |
| eCl@ss 7.0 (Classifications) | 27440401 |
| eCl@ss 8.0 (Classifications) | 27440401 |
| eCl@ss 9.0 (Classifications) | 27440401 |
| Nom. voltage (Item properties) | 400 V |
| Number of positions (Drawings) | 11 |
| Torque (Electrical parameters) | 0.5 Nm ... 0.6 Nm |
| Number of potentials (Drawings) | 11 |
| Pitch (Material data - housing) | 5 mm |
| Rated voltage (Item properties) | 250 V |
| Drive form screw head (Drawings) | Slotted (L) |
| Number of connections (Drawings) | 11 |
| Specification (Electrical tests) | IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09 |
| Nominal current (Item properties) | 13.5 A |
| pluggable (Electrical parameters) | no |
| Test specification (Pull-out test) | IEC 60998-1 (in parts) |
| Test specification (Vibration test) | IEC 60998-1:1990-04 |
| (Termination and connection method) | 1.5 mm² / flexible / > 40 N |
| Brief article description (Drawings) | PCB terminal block |
| Type of note (Packaging information) | Note on application |
| Dimension a (Material data - housing) | 50 mm |
| Specification (Temperature-rise test) | IEC 60998-1 (in parts) |
| Width [ w ] (Material data - housing) | 56 mm |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 years |
| Contact material (Connection capacity) | Cu alloy |
| Height [ h ] (Material data - housing) | 14.5 mm |
| Length [ l ] (Material data - housing) | 12 mm |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Rated voltage (II/2) (Item properties) | 630 V |
| Housing color (Material data - contact) | green (6021) |
| Rated voltage (III/2) (Item properties) | 400 V |
| Pin dimensions (Material data - housing) | 0.5 x 1 mm |
| Solder pin [P] (Material data - housing) | 3.5 mm |
| Stripping length (Electrical parameters) | 6 mm |
| Connection method (Electrical parameters) | Screw connection with tension sleeve |
| Hole diameter (Dimensions for the product) | 1.3 mm |
| Rated surge voltage (II/2) (Item properties) | 4 kV |
| Dimensional drawing (Material data - housing) | |
| Insulating material (Material data - contact) | PA |
| Rated surge voltage (III/2) (Item properties) | 4 kV |
| Rated surge voltage (III/3) (Item properties) | 4 kV |
| Surface characteristics (Connection capacity) | Tin-plated |
| Type of packaging (Dimensions for PCB design) | packed in cardboard |
| Pieces per package (Dimensions for PCB design) | 50 |
| Result (Air clearances and creepage distances) | Test passed |
| Pull-out test (Termination and connection method) | IEC 60998-1:1990-04 |
| Insulating material group (Material data - contact) | I |
| CTI according to IEC 60112 (Material data - contact) | 600 |
| Clearances and creepage distances (Electrical tests) | IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09 |
| Result (Current carrying capacity / derating curves) | Test passed |
| Conductor cross section solid (Electrical parameters) | 0.14 mm² ... 1.5 mm² |
| Height (without solder pin) (Material data - housing) | 11 mm |
| Specification (Air clearances and creepage distances) | IEC 60998-1:1990-04 |
| Denomination packing units (Dimensions for PCB design) | Pcs. |
| Rated current (Mechanical tests according to standard) | 13.5 A |
| Amplitude (Current carrying capacity / derating curves) | 0.35 mm (10 - 60.1 Hz) |
| Frequency (Current carrying capacity / derating curves) | 10 - 150 - 10 Hz |
| Conductor cross section flexible (Electrical parameters) | 0.14 mm² ... 1.5 mm² |
| Minimum creepage distance value (II/2) (Electrical tests) | 3.2 mm |
| Sweep speed (Current carrying capacity / derating curves) | 1 octave/min |
| Acceleration (Current carrying capacity / derating curves) | 5 g (60.1 - 150 Hz) |
| Minimum creepage distance value (III/2) (Electrical tests) | 3 mm |
| Minimum creepage distance value (III/3) (Electrical tests) | 3.2 mm |
| (Resistance to ageing, humidity and penetration of solids) | CSA |
| Conductor cross section AWG / kcmil (Electrical parameters) | 26 ... 16 |
| Specification (Current carrying capacity / derating curves) | IEC 60068-2-6:1995-03 |
| Ambient temperature (assembly) (General product information) | -5 °C ... 100 °C |
| Ambient temperature (operation) (General product information) | -40 °C ... 100 °C (Depending on the current carrying capacity/derating curve) |
| Test for conductor damage and slackening (Ambient conditions) | IEC 60998-1:1990-04 |
| Metal surface soldering area (top layer) (Connection capacity) | Tin (5 - 7 µm Sn) |
| Metal surface terminal point (top layer) (Connection capacity) | Tin (5 - 7 µm Sn) |
| Rated voltage (III/2) (Mechanical tests according to standard) | 400 V |
| Conductor cross section (Mechanical tests according to standard) | 1.5 mm² |
| Flammability rating according to UL 94 (Material data - contact) | V0 |
| Metal surface soldering area (middle layer) (Connection capacity) | Nickel (2 - 3 µm Ni) |
| Metal surface terminal point (middle layer) (Connection capacity) | Nickel (2 - 3 µm Ni) |
| Minimum clearance - inhomogeneous field (II/2) (Electrical tests) | 3 mm |
| Minimum clearance - inhomogeneous field (III/2) (Electrical tests) | 3 mm |
| Minimum clearance - inhomogeneous field (III/3) (Electrical tests) | 3 mm |
| 2 conductors with same cross section, solid (Electrical parameters) | 0.14 mm² ... 0.75 mm² |
| Rated surge voltage (III/2) (Mechanical tests according to standard) | 4 kV |
| Test duration per axis (Current carrying capacity / derating curves) | 2.5 h |
| Ambient temperature (storage/transport) (General product information) | -40 °C ... 70 °C |
| 2 conductors with same cross section, flexible (Electrical parameters) | 0.14 mm² ... 0.75 mm² |
| Glow wire flammability index GWFI according to EN 60695-2-12 (Material data - contact) | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 (Material data - contact) | 775 |
| Connection in acc. with standard (Resistance to ageing, humidity and penetration of solids) | EN-VDE |
| Conductor cross section / conductor type / tensile force (Termination and connection method) | 0.14 mm² / solid / > 10 N |
| Conductor cross section, flexible, with ferrule, with plastic sleeve (Electrical parameters) | 0.25 mm² ... 1.5 mm² |
| Temperature for the ball pressure test according to EN 60695-10-2 (Material data - contact) | 125 °C |
| Conductor cross section flexible, with ferrule without plastic sleeve (Electrical parameters) | 0.25 mm² ... 1.5 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve (Electrical parameters) | 0.25 mm² ... 0.5 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve (Electrical parameters) | 0.5 mm² ... 1 mm² |
Product Description
Terminal block for printed circuit board, nominal current: 13.5 A, nominal voltage (III/2): 400 V, nominal cross-section: 1.5 mm², number of potentials: 11, number of rows: 1, number of poles per row:
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
DiagramType: SMKDSN 1,5/...(-5,08)Tested according to DIN EN 60512-5-2:2003-01Reduction factor = 1Number of positions: 5
