SM090-6VI

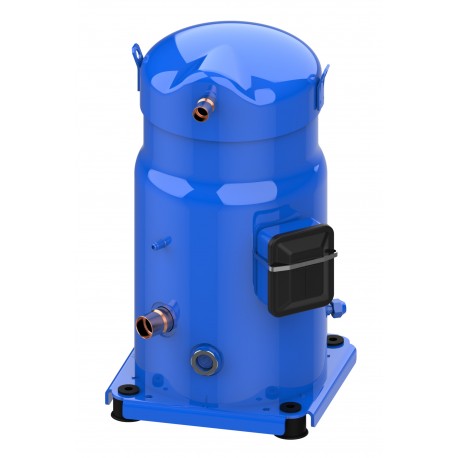

SM090-6VI DANFOSS REFRIGERATION Scroll compressor, SM090S6VC
$0.00USD
3357 in stock
Key Specifications
EAN ():5702424540593
LRA ():165 A
MCC ():30 A
RLA ():21.4 A
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702424540593 |
| LRA () | 165 A |
| MCC () | 30 A |
| RLA () | 21.4 A |
| Type () | SM090 |
| Phase () | 3 |
| Colour () | Blue |
| Family () | SM |
| Volume () | 0.23 Cubic.mtr |
| Approval () | CEUKCA |
| Oil type () | Mineral |
| Economizer () | No |
| Net weight () | 65 Kg |
| Technology () | Scroll |
| Description () | SM090-6 |
| Shipped oil () | Initial oil charge |
| Gross weight () | 70.53 Kg |
| Model number () | SM090S6VC |
| Refrigerants () | R22 |
| Relief valve () | None |
| Diameter [mm] () | 254 mm |
| Gauge port HP () | None |
| Gauge port LP () | Schrader |
| Oil reference () | 160P |
| Product group () | Hermetic compressors |
| Segment usage () | Air conditioning |
| Drawing number () | 8552036b |
| Frequency [Hz] () | 50 |
| Glass mounting () | Threaded |
| Oil charge [L] () | 3.25 L |
| Packing format () | Single pack |
| Viscosity [cP] () | 32 cP |
| Brand technique () | Scroll compressor |
| Connection type () | Brazed |
| Low Side TS Max () | 63 °C |
| Low Side TS Min () | -35 °C |
| Low Side Volume () | 13 L |
| Capacity control () | Fixed speed |
| Factory HP [bar] () | 33 bar |
| Factory LP [bar] () | 25 bar |
| Fitting standard () | ODF |
| High Side TS Max () | 150 °C |
| High Side TS Min () | -35 °C |
| High Side Volume () | 1.1 L |
| Motor protection () | Internal overload protector |
| Oil equalization () | 3/8'' flare SAE |
| Packing quantity () | 1 |
| SCIP dossier no. () | 2e9b0776-281a-4205-bf1f-dbeea526b31d |
| Shipped mounting () | Mounting kit with grommets, bolts, nuts, sleeves and washers |
| GP LP torque [Nm] () | 15 N-m |
| Glass torque [Nm] () | 50 N-m |
| Power connections () | Screw 4.8 mm |
| Torque earth [Nm] () | 2 N-m |
| Torque power [Nm] () | 3 N-m |
| Total height [mm] () | 508 mm |
| Configuration code () | Single |
| EU RoHS compliance () | Yes with exemptions |
| Swept volume [cm3] () | 120.5 cm³ |
| IP protection class () | IP54 (with cable gland) |
| Test HP [bar] [Max] () | 32 bar |
| Test LP [bar] [Max] () | 25 bar |
| Mounting torque [Nm] () | 21 N-m |
| Packaging width [mm] () | 370 mm |
| Shipped instructions () | Installation instructions |
| Test dif [bar] [Max] () | 24 bar |
| Packaging height [mm] () | 596 mm |
| Packaging length [mm] () | 470 mm |
| Packaging weight [Kg] () | 69 kg |
| Product Name Description () | Scroll compressor SM |
| Compressor power supply [V] () | 230/3/50 |
| Suction connection material () | - |
| Max pressure (PS) - low side () | 25 bar |
| Oil equalization torque [Nm] () | 48 N-m |
| Suction connection size [in] () | 1 1/8 in |
| Max pressure (PS) - high side () | 30.2 bar |
| Refrigerant charge [kg] [Max] () | 8.5 kg |
| Discharge connection size [in] () | 3/4 in |
| Network power supply [V/Ph/Hz] () | 200-230/3/50 208-230/3/60 |
| Rotational speed at 50Hz [rpm] () | 2900 rpm |
| Suction connection height [mm] () | 142 mm |
| Maximum Operating Current [MOC] () | 27 A |
| Number of starts per hour [Max] () | 12 |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Discharge connection height [mm] () | 465 mm |
| Suction connection pipe size [in] () | 1 1/8 in |
| Discharge connection pipe size [in] () | 3/4 in |
| In scope of WEEE and contain batteries () | No |
| Low value of voltage range at 50Hz [V] () | 207 V |
| High value of voltage range at 50Hz [V] () | 253 V |
| Low value of nominal voltage at 50Hz [V] () | 230 V |
| High value of nominal voltage at 50Hz [V] () | 230 V |
| Winding resistance for three-phase compressors with identical windings [Ohm] () | 0.5 Ohm |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Refrigerants: R22, Segment usage: Air conditioning, Compressor power supply [V]: 230/3/50, Packing format: Single pack
