SM-7EP1N8AQL03

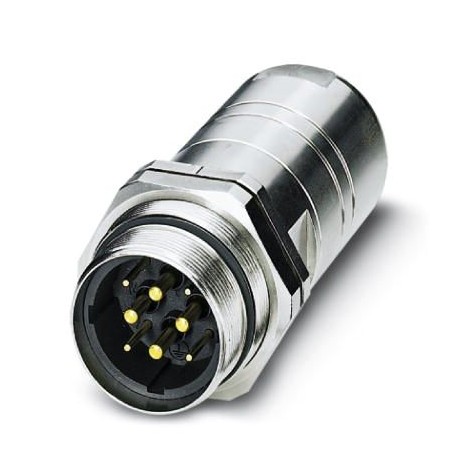

SM-7EP1N8AQL03 1605843 PHOENIX CONTACT Pasamuro wall back, long Straight, Locking screw, M40, number of pole..
$0.00USD
3322 in stock
Key Specifications
EAN:Four trillion forty six billion three hundred fifty six million two hundred fifty five thousand two hundred seventy one
Key order:One million six hundred five thousand eight hundred forty three
Key selling:ABRCCE -
Packing unit:6 pcs
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | Four trillion forty six billion three hundred fifty six million two hundred fifty five thousand two hundred seventy one |
| Key order | One million six hundred five thousand eight hundred forty three |
| Key selling | ABRCCE - |
| Packing unit | 6 pcs |
| Country of origin | (Germany) |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Encoding (Data commercial) | N |
| Room temperature (Overview) | -40 °C ... 125 °C |
| Cable entry (Data commercial) | 12.5 mm ... 17 mm |
| Lock system (Data commercial) | Locking screw |
| N. º poles (Data commercial) | Eight |
| Observation (Data commercial) | Indication of order: The contacts set 4 x Ø 2 mm, 4 x Ø 3.6 mm must be ordered separately |
| Index of protection (Overview) | IP67 |
| Height max. mounting (Material) | 3000 m |
| Mounting type (Data commercial) | Central locking |
| Unit weight (excluding packaging) | 576,480 g |
| Type of contacts (Data commercial) | Pin |
| (Data according to DIN en 61984:2001) | You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
| Degree of dirt power Contacts (Material) | Three |
| Category surge signal Contacts (Material) | III |
| Degree of dirt signal Contacts (Material) | Three |
| Category of surge power Contacts (Material) | III |
| Connection type of contact (Data commercial) | Connection set |
| Cable gland for enclosure Pg (Data commercial) | without |
| Insulation Material (Environmental conditions) | PA 6.6 |
| China RoHS (Data according to DIN en 61984:2001) | Space of time for the intended use (FEUP): 50 years |
| REACh SVHC (Data according to DIN en 61984:2001) | Lead 7439-92-1 |
| Rated voltage transient power Contacts (Material) | 6 kV |
| Material of the housing (Environmental conditions) | Rotating parts: alloy copper-zinc (CuZn), die-cast parts pressed: zinc (GD-Zn) |
| Rated voltage transient signal Contacts (Material) | 4 kV |
| Rated voltage/of Contacts service power (Material) | 630 V |
| Rated voltage/of Contacts service signals (Material) | 250 V |
| Rated current per contact power at 25ºC (Data commercial) | 70 To |
| Diameter of contact of the power contacts (Data commercial) | 3.6 mm |
| Rated current per contact signal-to-25ºC (Data commercial) | 30 To |
| Diameter of contact of the signal contacts (Data commercial) | 2 mm |
| Material of the seal ring and o-ring (Environmental conditions) | FPM |
