SM-5ES1N8A8S22X

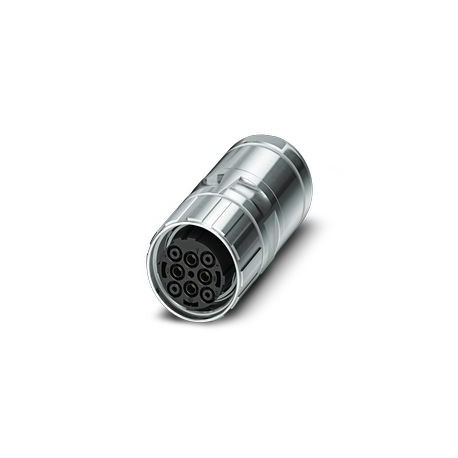

SM-5ES1N8A8S22X 1242760 PHOENIX CONTACT Cable connector, long straight, Screw lock, M40, number of poles: 2+..
$99.67USD
147 in stock
Key Specifications
:• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
Type:straight long
Coding:N
Series:SM
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. | |
| Type | straight long |
| Coding | N |
| Series | SM |
| General | Order crimp contacts 2 x Ø 2 mm, 4 x Ø 3.6 mm separately |
| Altitude | 3000 m |
| Shielded | yes |
| Application | Power |
| Head design | Socket |
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Thread type | M40 |
| Max. current | 70 A |
| Product type | Circular connector (cable-side) |
| Seal material | FPM |
| Contact diameter | 3.6 mm |
| Housing material | Turned parts: copper zinc alloy (CuZn), aluminum (Al), die-cast parts: zinc (GD-Zn) |
| Connection method | Crimp connection |
| Connection profile | 2+3+PE |
| Insulator material | PA 6.6 |
| Nominal voltage UN | 630 V |
| Degree of pollution | 3 |
| Number of positions | 6 |
| Rated surge voltage | 6 kV |
| Degree of protection | IP67 |
| Overvoltage category | III |
| External cable diameter | 9 mm ... 14 mm |
| Gasket and O-ring material | FPM |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Product Description
Cable connector, straight long, Screw locking mechanism, M40, number of positions: 2+3+PE, contact connection type: Socket, shielded: yes, degree of protection: IP67, cable diameter range: 9 mm ... 14
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
