In Stock Hot Product
SKVS 7/GL
SKVS 7/GL 10060615 WISKA Light grey RAL 7035 cable glands, PA IP68, flexible protection input range from 3.0..
$0.00USD
4892 in stock
Key Specifications
Type (Features):SKVS 7
Thread type (Features):PG
Key width SW (Features):15 mm
Packing unit (Features):100
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type (Features) | SKVS 7 |
| Thread type (Features) | PG |
| Key width SW (Features) | 15 mm |
| Packing unit (Features) | 100 |
| Product Color (Features) | RAL 7035 |
| Glow wire test (Features) | 750 °C |
| Temp. range max (Features) | 80 °C |
| Temp. range min (Features) | -20 °C |
| Total length TL (Features) | 68 mm |
| Protection class (Features) | IP69, IP68 (5 bar 30 min) |
| Order no. RAL 7035 (Features) | 10060615 |
| Collar diameter (E) (Features) | 16 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Polyamide |
| Ø cable diameter max (Features) | 6,5 mm |
| Ø cable diameter min (Features) | 3 mm |
| Ø Connection thread D (Features) | 7 |
| Material sealing gasket (Features) | EPDM |
| Type of cable anchorage (Features) | A |
| Length screw-in thread L (Features) | 8 mm |
Product Description

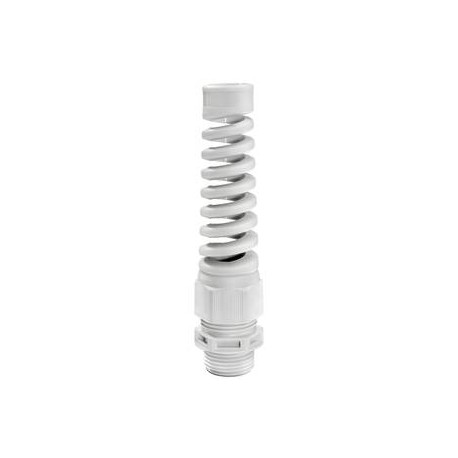

Cable gland with bend protection, polyamide, Pg 7, RAL 7035
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
