SKS 8-D

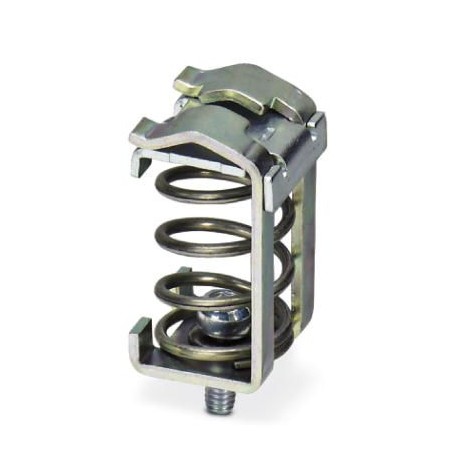

SKS 8-D 3240213 PHOENIX CONTACT Shield connection terminal block
$7.74USD
1339 in stock
Key Specifications
GTIN:4046356458665
Orderkey:3240213
Catalog page:Page 613 (C-3-2017)
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356458665 |
| Orderkey | 3240213 |
| Catalog page | Page 613 (C-3-2017) |
| Packing unit | 10 pc |
| Width (General) | 12.4 mm |
| Height (General) | 34.9 mm |
| Length (General) | 18 mm |
| Country of origin | DE (Germany) |
| (Connection data) | No hazardous substances above threshold values |
| Custom tariff number | 85369010 |
| Minimum order quantity | 10 pc |
| Screw thread (Dimensions) | M4 |
| Color (Key Commercial Data) | silver |
| China RoHS (Connection data) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection method (Dimensions) | Spring-cage connection |
| Cable diameter (Key Commercial Data) | 3 mm ... 8 mm |
| Weight per Piece (excluding packing) | 11.000 g |
| Open side panel (Key Commercial Data) | No |
| Number of levels (Key Commercial Data) | 1 |
| Number of connections (Key Commercial Data) | 1 |
| Conductor cross section AWG max. (Dimensions) | 8 |
| Conductor cross section AWG min. (Dimensions) | 12 |
| Conductor cross section solid max. (Dimensions) | 8 mm² |
| Conductor cross section solid min. (Dimensions) | 3 mm² |
| Conductor cross section flexible max. (Dimensions) | 8 mm² |
| Conductor cross section flexible min. (Dimensions) | 3 mm² |
Product Description
Terminal block for screen connection, for direct display support on conductive mounting plates
