In Stock Hot Product
SKMKV 9

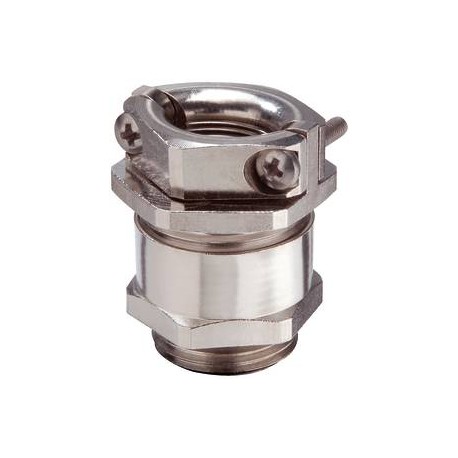

SKMKV 9 10062132 WISKA Metal hexagonal cable glands + IP54 flange clamping, range from 4.0 to 11.0mm, pg.09 ..
$0.00USD
3664 in stock
Key Specifications
Type (Features):SKMKV 9
Surface (Features):Nickel-plated
Thread type (Features):PG
Packing unit (Features):50
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type (Features) | SKMKV 9 |
| Surface (Features) | Nickel-plated |
| Thread type (Features) | PG |
| Packing unit (Features) | 50 |
| Key width SW1 (Features) | 19 mm |
| Key width SW2 (Features) | 17 mm |
| Impact category (Features) | 6 |
| Temp. range max (Features) | 70 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 29 mm |
| Protection class (Features) | IP54 |
| Collar diameter E1 (Features) | 21 mm |
| Collar diameter E2 (Features) | 19 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Brass nickel-plated |
| Ø cable diameter max (Features) | 11 mm |
| Ø cable diameter min (Features) | 4 mm |
| Ø Connection thread D (Features) | 9 |
| Material sealing gasket (Features) | Soft rubber |
| Order no. nickel-plated (Features) | 10062132 |
| Length screw-in thread L (Features) | 6 mm |
Product Description
Cable gland hexagonal, brass nickel-plated, Pg 9 with external strain relief
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
