SK U/2,8 P3,81 WH CUS

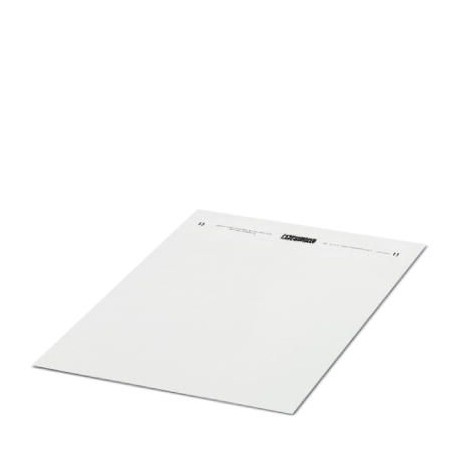

SK U/2,8 P3,81 WH CUS 0825138 PHOENIX CONTACT Marker strip
$0.00USD
3269 in stock
Key Specifications
GTIN:4046356354899
Note:Made to Order (non-returnable)
Orderkey:0825138
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356354899 |
| Note | Made to Order (non-returnable) |
| Orderkey | 0825138 |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 49119900 |
| Type (Ambient conditions) | adhesive |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | white |
| Cycles (Ambient conditions) | 2 |
| Result (Ambient conditions) | Test passed |
| Adhesive (Ambient conditions) | Acrylic |
| Material (Ambient conditions) | Polyester |
| Components (Ambient conditions) | free from silicone and halogen |
| Width (a) (Key Commercial Data) | 2.8 mm |
| Length (b) (Key Commercial Data) | 186 mm |
| Printability (Ambient conditions) | Office printing systems |
| Climate level (Ambient conditions) | AHT 1.0 S |
| Foil strength (Ambient conditions) | 50 µm |
| Test duration (Ambient conditions) | 96 h |
| Weight per Piece (excluding packing) | 9.000 g |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| Adhesive strength (Ambient conditions) | 20 µm |
| China RoHS (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Marking mounting type (Ambient conditions) | adhesive |
| Ambient temperature (assembly) (Dimensions) | > 0 °C |
| Recommended storage conditions (Dimensions) | 20-25 °C / 40-50 % relative humidity. |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 150 °C |
| Number of marker strips (Ambient conditions) | 50 |
| Condensation test result (Ambient conditions) | Test passed |
| Salt spray testing result (Ambient conditions) | Test passed |
| Wipe resistance test result (Ambient conditions) | Test passed |
| Salt spray test specification (Ambient conditions) | DIN EN 60068-2-11:2000-02 |
| Test specification weathering-resistance (Ambient conditions) | Following ISO 4892-2:2013-03 |
| Wipe resistance of test specification inscriptions (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Alternating condensation climate with SO2 test specification (Ambient conditions) | DIN 50018:2013-05 |
| Test for substances that would hinder coating with paint or varnish (Ambient conditions) | VW PV 3.10.7:2005-02 |
Product Description
Marking strip, Elbow, available: Elbow, white, labelled according to customer specifications, mounting class: glued, for terminal width: 3.81 mm, usable surface: 186 x 2.8 mm
