SK 35

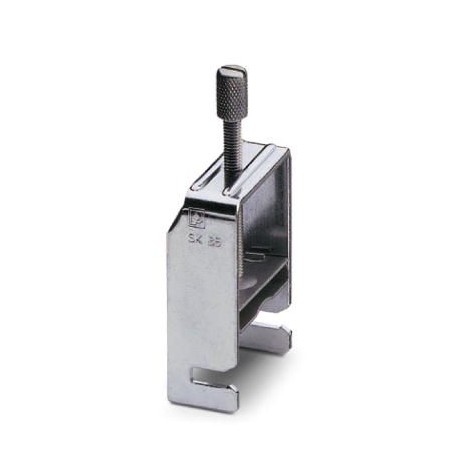

SK 35 3026463 PHOENIX CONTACT Shield connection terminal block
$12.21USD
850 in stock
Key Specifications
GTIN:4017918167998
Orderkey:3026463
Catalog page:Page 612 (C-3-2017)
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918167998 |
| Orderkey | 3026463 |
| Catalog page | Page 612 (C-3-2017) |
| Packing unit | 10 pc |
| Width (General) | 40 mm |
| Height (General) | 160.5 mm |
| Length (General) | 20 mm |
| Country of origin | DE (Germany) |
| (Connection data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Custom tariff number | 85369010 |
| Minimum order quantity | 10 pc |
| Screw thread (Dimensions) | M5 |
| Color (Key Commercial Data) | silver |
| China RoHS (Connection data) | Environmentally Friendly Use Period = 50 |
| Connection method (Dimensions) | Screw connection |
| Tightening torque max (Dimensions) | 1.8 Nm |
| Tightening torque, min (Dimensions) | 1.5 Nm |
| Cable diameter (Key Commercial Data) | 20 mm ... 35 mm |
| Weight per Piece (excluding packing) | 63.720 g |
| Open side panel (Key Commercial Data) | No |
| Number of levels (Key Commercial Data) | 1 |
| Number of connections (Key Commercial Data) | 1 |
Product Description
Terminal block for screen connection, for screen support on busbars, contact resistance < 1 mΩ
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
