SK 28

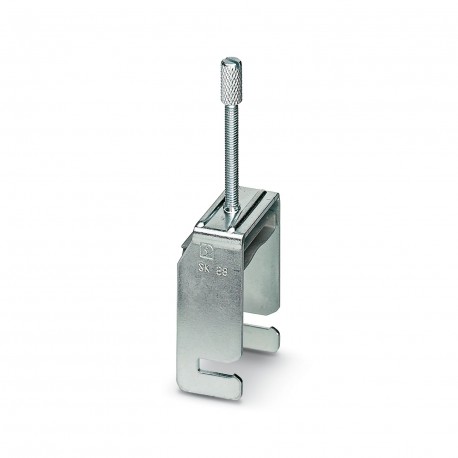

SK 28 3026997 PHOENIX CONTACT Shield connection terminal block
$12.06USD
859 in stock
Key Specifications
GTIN:4046356284318
Orderkey:3026997
Catalog page:Page 612 (C-3-2017)
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356284318 |
| Orderkey | 3026997 |
| Catalog page | Page 612 (C-3-2017) |
| Packing unit | 10 pc |
| Width (General) | 31 mm |
| Height (General) | 93.5 mm |
| Length (General) | 20 mm |
| Country of origin | CN (China) |
| (Connection data) | No hazardous substances above threshold values |
| Custom tariff number | 85369010 |
| Minimum order quantity | 10 pc |
| Screw thread (Dimensions) | M4 |
| Color (Key Commercial Data) | silver |
| China RoHS (Connection data) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection method (Dimensions) | Screw connection |
| ASD level (Key Commercial Data) | 0.02 g²/Hz |
| Shock form (Key Commercial Data) | Half-sine |
| Acceleration (Key Commercial Data) | 5 g |
| Tightening torque max (Dimensions) | 1 Nm |
| Test spectrum (Key Commercial Data) | Service life test category 1, class B, body mounted |
| Cable diameter (Key Commercial Data) | 5 mm ... 28 mm |
| Shock duration (Key Commercial Data) | 30 ms |
| Test frequency (Key Commercial Data) | f1= 5 Hz to f2= 150 Hz |
| Weight per Piece (excluding packing) | 41.660 g |
| Open side panel (Key Commercial Data) | No |
| Test directions (Key Commercial Data) | X-, Y- and Z-axis (pos. and neg.) |
| Number of levels (Key Commercial Data) | 1 |
| Shock test result (Key Commercial Data) | Test passed |
| Number of connections (Key Commercial Data) | 1 |
| Test duration per axis (Key Commercial Data) | 5 h |
| Number of shocks per direction (Key Commercial Data) | 3 |
| Test specification, shock test (Key Commercial Data) | DIN EN 50155 (VDE 0115-200):2008-03 |
| Oscillation, broadband noise test result (Key Commercial Data) | Test passed |
| Test specification, oscillation, broadband noise (Key Commercial Data) | DIN EN 50155 (VDE 0115-200):2008-03 |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) (Key Commercial Data) | Test passed |
Product Description
Terminal block for screen connection, for screen support on busbars, contact resistance < 1 mΩ
