In Stock Hot Product
SI-SES-U1A/0,6
SI-SES-U1A/0,6 1404514 PHOENIX CONTACT Data interface
$0.00USD
4923 in stock
Key Specifications
GTIN:4046356698542
Orderkey:1404514
Catalog page:Page 730 (C-2-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356698542 |
| Orderkey | 1404514 |
| Catalog page | Page 730 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | CZ (Czech Republic) |
| Custom tariff number | 85366990 |
| (Ambient conditions) | PVC (Plug) |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| (Mechanical characteristics) | IP65 (with closed protective cover) |
| Material (Ambient conditions) | PA (Socket) |
| Shielded (Key Commercial Data) | yes |
| Transmission speed (Material data) | max. 5 Gbps (USB-A:3.0) |
| Degree of pollution (Material data) | 3 |
| Number of positions (Material data) | 4 |
| Cable diameter (Key Commercial Data) | 6.10 mm |
| Weight per Piece (excluding packing) | 62.700 g |
| Contact material (Ambient conditions) | Copper alloy |
| Length of cable (Key Commercial Data) | 0.6 m |
| Rated voltage (III/3) (Material data) | max. 30 V AC/DC (USB-A) |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Connection profile (Key Commercial Data) | USB-A |
| Number of positions (Key Commercial Data) | 4 |
| External sheath, color (Ambient conditions) | black |
| Outer sheath, material (Ambient conditions) | PVC |
| Contact surface material (Ambient conditions) | Au |
| Degree of protection (Mechanical characteristics) | IP20 (when plugged in) |
| Insertion/withdrawal cycles (Key Commercial Data) | ≥ 1500 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Ambient temperature (operation) (Mechanical characteristics) | -5 °C ... 70 °C |
| Flammability rating according to UL 94 (Electrical characteristics) | V0 |
Product Description

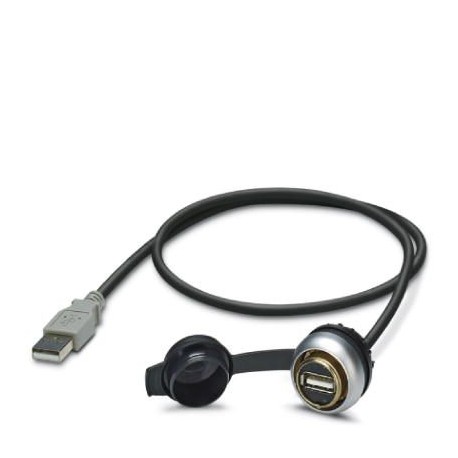

USB service box (female/connector), A-construction with 0.6 m cable
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
