In Stock Hot Product
SI-RND-R1A

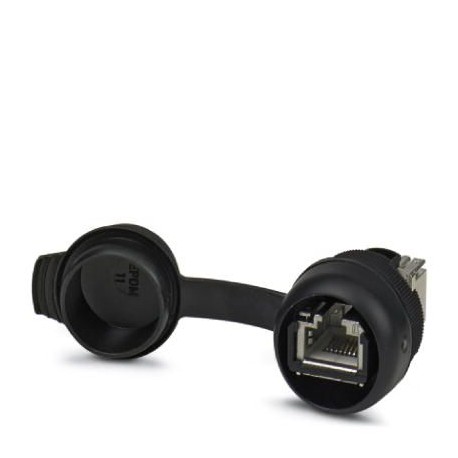

SI-RND-R1A 1425186 PHOENIX CONTACT Data interface
$0.00USD
4491 in stock
Key Specifications
GTIN:4055626386706
Orderkey:1425186
Packing unit:1 pc
Country of origin:DE (Germany)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626386706 |
| Orderkey | 1425186 |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| Height (Ambient conditions) | 42.7 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Transmission speed (Material data) | 10 Gbps (RJ45 (socket/socket), 8-pos.) |
| Number of positions (Material data) | 8 |
| Weight per Piece (excluding packing) | 22.220 g |
| Contact material (Ambient conditions) | Copper alloy |
| Housing material (Ambient conditions) | PA |
| Type of contact (Key Commercial Data) | Socket |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Connection profile (Key Commercial Data) | RJ45 |
| Number of positions (Key Commercial Data) | 8 |
| GRP transmission properties (Material data) | CAT6A |
| Contact surface material (Ambient conditions) | gold-plated |
| Degree of protection (Mechanical characteristics) | IP65 (with closed protective cover) |
| Insertion/withdrawal cycles (Key Commercial Data) | ≥ 750 |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Ambient temperature (operation) (Mechanical characteristics) | -40 °C ... 70 °C |
| Flammability rating according to UL 94 (Electrical characteristics) | V0 |
Product Description
Service connection with RJ45 (female connector/female connector), 8 metal poles, CAT6A connection, with protective cap
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
