SH-8ESS48A8LB3S

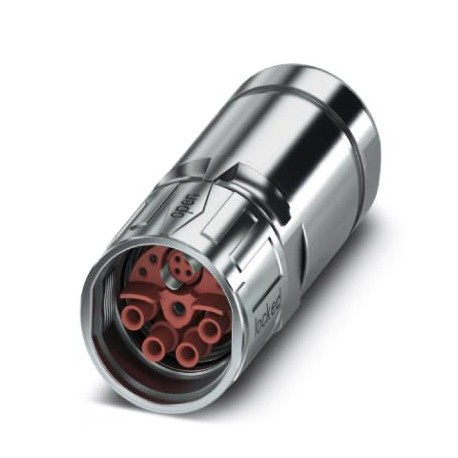

SH-8ESS48A8LB3S 1621526 PHOENIX CONTACT Cable connector
$0.00USD
3189 in stock
Key Specifications
GTIN:4046356936491
Note:Made to Order (non-returnable)
Orderkey:1621526
Catalog page:Page 114 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356936491 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1621526 |
| Catalog page | Page 114 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| (Cable seal data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Custom tariff number | 85366990 |
| China RoHS (Cable seal data) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Cable seal data) | Lead 7439-92-1 |
| Cable diameter (Housing data) | 9 mm ... 12 mm |
| (Data of the insulating body) | IP68 |
| Coding (Standards and Regulations) | N |
| Weight per Piece (excluding packing) | 127.000 g |
| Application (Standards and Regulations) | Hybrid |
| Thread type (Data of the insulating body) | M23 |
| Type of contacts (Standards and Regulations) | Socket |
| Type of locking (Data of the insulating body) | SPEEDCON locking |
| Housing material (Data of the insulating body) | Metal |
| Insulator material (Standards and Regulations) | PA 6.6 |
| Number of positions (Standards and Regulations) | 13 |
| Rated surge voltage (Standards and Regulations) | 1.5 kV |
| Ambient temperature (operation) (Key Commercial Data) | -40 °C ... 130 °C |
| Contact connection method (Standards and Regulations) | Crimp connection |
| Flammability rating according to UL 94 (Temperature range) | HB |
| Contact diameter of power contacts (Standards and Regulations) | 2 mm |
| Rated voltage (II/3) power contact (Standards and Regulations) | 850 V DC |
| Contact diameter of signal contacts (Standards and Regulations) | 1 mm |
| Rated voltage (III/3) power contact (Standards and Regulations) | 630 VòAC |
| Rated voltage (III/3) signal contact (Standards and Regulations) | 50 V |
| Insertion/withdrawal cycles mechanical (Standards and Regulations) | 100 |
| Degree of protection (when plugged in) (Data of the insulating body) | IP67 |
| Nominal current per power contact at 25°C (Standards and Regulations) | 30 A |
| Nominal current per signal contact at 25°C (Standards and Regulations) | 8 A |
| Litz wire cross section of power contacts max. (Standards and Regulations) | 4 mm² |
| Litz wire cross section of power contacts min. (Standards and Regulations) | 0.25 mm² |
| Litz wire cross section of signal contacts max. (Standards and Regulations) | 1 mm² |
| Litz wire cross section of signal contacts min. (Standards and Regulations) | 0.06 mm² |
Product Description
M23, Plug connector. for cables, SH, long straight, shielded: yes, SPEEDCON lock, No. of poles: 8+4+PE, contact type: Female, Crimped connection, cable diameter range: 9 mm ... 12 mm, coding:N, Altern
