SH-8ESC58AAC00S

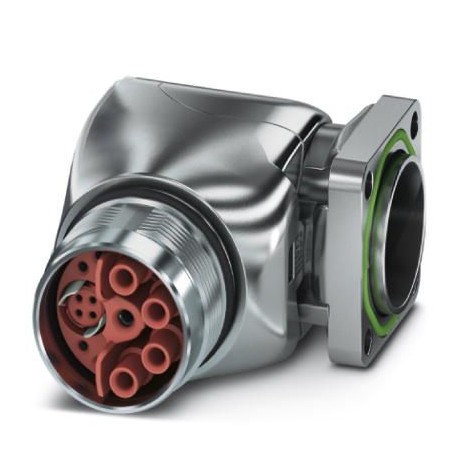

SH-8ESC58AAC00S 1621559 PHOENIX CONTACT Device connector, front mounting
$0.00USD
3129 in stock
Key Specifications
GTIN:4046356937078
Note:Made to Order (non-returnable)
Orderkey:1621559
Catalog page:Page 119 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356937078 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1621559 |
| Catalog page | Page 119 (C-2-2017) |
| Packing unit | 1 pc |
| (Housing data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| China RoHS (Housing data) | Environmentally Friendly Use Period = 50 |
| Coding (Temperature range) | N |
| Data rate (Temperature range) | 100 Mbps |
| (Data of the insulating body) | IP68 |
| Application (Temperature range) | Hybrid |
| Type of contacts (Temperature range) | Socket |
| Weight per Piece (excluding packing) | 132.200 g |
| Insulator material (Temperature range) | PA 6.6 |
| Number of positions (Temperature range) | 13 |
| Rated surge voltage (Temperature range) | 1.5 kV |
| Thread type (Data of the insulating body) | M23 |
| Contact connection method (Temperature range) | Crimp connection |
| Type of locking (Data of the insulating body) | for standard and SPEEDCON interlock |
| Housing material (Data of the insulating body) | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Flange dimensions (Data of the insulating body) | 28 mm x 28 mm |
| Contact diameter, data contacts (Temperature range) | 0.8 mm |
| Nominal voltage of data contact (Temperature range) | 50 V |
| Ambient temperature (operation) (Key Commercial Data) | -40 °C ... 130 °C |
| Contact diameter of power contacts (Temperature range) | 2 mm |
| Rated voltage (II/3) power contact (Temperature range) | 850 V DC |
| Rated voltage (III/3) data contact (Temperature range) | 50 V |
| Contact diameter of signal contacts (Temperature range) | 1 mm |
| Rated voltage (III/3) power contact (Temperature range) | 630 VòAC |
| Rated voltage (III/3) signal contact (Temperature range) | 50 V |
| Insertion/withdrawal cycles mechanical (Temperature range) | 100 |
| Nominal current per data contact at 25°C (Temperature range) | 3.6 A |
| Nominal current per power contact at 25°C (Temperature range) | 30 A |
| Nominal current per signal contact at 25°C (Temperature range) | 8 A |
| Litz wire cross section, data contacts, max. (Temperature range) | 0.5 mm² |
| Litz wire cross section, data contacts, min. (Temperature range) | 0.08 mm² |
| Litz wire cross section of power contacts max. (Temperature range) | 4 mm² |
| Litz wire cross section of power contacts min. (Temperature range) | 0.25 mm² |
| Litz wire cross section of signal contacts max. (Temperature range) | 1 mm² |
| Litz wire cross section of signal contacts min. (Temperature range) | 0.06 mm² |
| Degree of protection (when plugged in) (Data of the insulating body) | IP67 |
Product Description
M23, Conect. plug. to be apar. front wall, SH, Swivel angle, for standard and SPEEDCON lock, No. of poles: 4+4+4+PE / 3+N+PE, Rotation direction: Standard, contact type: Female, Crimped connection, Ax
