SG-E1-02

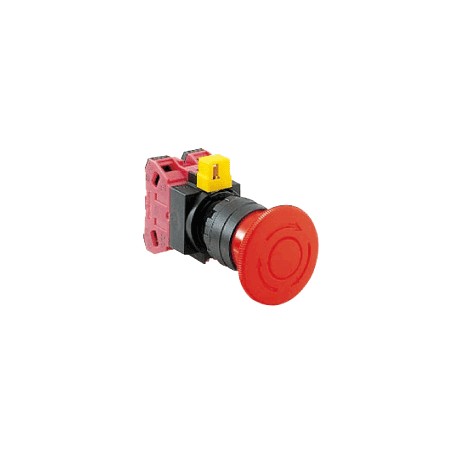

SG-E1-02 PANASONIC Emergency stop switch Pushlock, Turn reset, 2NC
$0.00USD
3989 in stock
Key Specifications
:Ue
DC:Resistive load (DC-12)
Ie:AC
24V:48V
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Ue | |
| DC | Resistive load (DC-12) |
| Ie | AC |
| 24V | 48V |
| B10D | 100,000(ISO 13849-1 Annex C Table C.1) |
| Item | Specifications |
| Weight | Approx. 60 g |
| Details | Emergency stop switch |
| Product | Emergency stop switch |
| Material | Actuator : PA6, Contact block : PA66 |
| Protection | Front of the panel : IP65 (IEC 60529) |
| Accessories | Lever lock : 1 pc |
| Part Number | SG-E1-02 |
| Button color | Red |
| Product name | Emergency stop switch [Pushbutton type] SG-E1 |
| Reset action | Turn reset |
| Product Number | SG-E1-02 |
| Shock resistance | Malfunction : 100m/s2, Destruction : 1,000m/s2 |
| Connecting method | Terminal screw (M3.5 philips & flathead ) |
| Contact resistance | 50m Ω max. (initial value) |
| Contact arrangement | 2NC |
| Applicable standards | JIS C 8201-5-1, IEC 60947-5-1, EN 60947-5-1,UL 508 (UL listed Certification), CSA 22.2No.14 (c-UL listed Certification) |
| Applicable wire size | Max. 2 mm2(Single core ø1.6ø0.063max.)2 wires max. |
| Vibration resistance | Malfunction : 5 to 55 Hz、half amplitude 0.5mm0.020 inDestruction : 30 Hz, half amplitude 1.5mm0.059 in |
| Electrical durability | 500,000 operations min. (900 operations/hour) |
| Insulation resistance | 100 MΩ min. (500 V DC megger) |
| Mechanical durability | 500,000 operations min. |
| Thermal current (Ith) | 10A |
| Excess voltage category | II (IEC 60664-1) |
| Inductive load (AC-15)(A600) | 10A |
| Inductive load (DC-13)(P600) | 4A |
| Rated insulation voltage (Ui) | 600V |
| Operating condition : Altitude | 2,000 m6,561.68 ftmax. |
| Electric shock protection class | Class II (IEC 61140) |
| Impulse withstand voltage (Uimp) | 4kV |
| Tightening torque of the locking ring | 2.0 N・m |
| Operating condition : Ambient humidity | 45 to 85 % RH |
| Operating condition : Pollution degree | 3 |
| Tightening torque of the terminal screws | 1.0 to 1.3 N・m |
| Operating condition : Ambient temperature | -25 to +60 ℃-13 to +140 ℉(No dew condensation or icing allowed)Storage : -40 to +80 ℃-40 to +176 ℉ |
| Rated operational voltage (Ue) / Rated operational current (Ie) | Ue24V48V50V110V220V440VIeACResistive load (AC-12)10A-10A10A6A2AInductive load (AC-15)(A600)10A-7A5A3A1ADCResistive load (DC-12)8A4A-2.2A1.1A-Inductive load (DC-13)(P600)4A2A-1.1A0.6A- |
