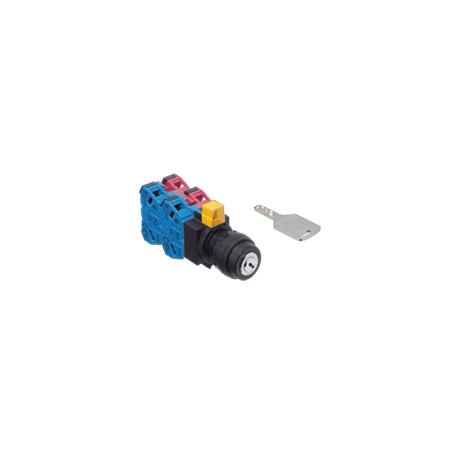

SG-D1-2B22 PANASONIC Key selector switch 2-position, key removable at left position, 2NO/2NC
$0.00USD
4119 in stock
Key Specifications
:Ue
DC:Resistive load (DC-12)
Ie:AC
24V:48V
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Ue | |
| DC | Resistive load (DC-12) |
| Ie | AC |
| 24V | 48V |
| B10D | 100,000(ISO 13849-1 Annex C Table C.1) |
| Item | Specifications |
| Weight | Approx. 95 g |
| Product | Key selector switch |
| Material | Actuator : PA6, Contact block : PA66 |
| Position | |
| Protection | Front of the panel : IP65 |
| Accessories | Key : 2pcs., Lever lock : 1 pc. |
| Part Number | SG-D1-2B22 |
| Product name | Key selector switch SG-D1 |
| Product Number | SG-D1-2B22 |
| Shock resistance | Malfunction : 100 m/s2, Destruction : 1,000m/s2 |
| Connecting method | Terminal screw (M3.5 philips & flathead ) |
| Selector behavior | 2 positions |
| Contact resistance | 50 mΩ max. (initial value) |
| Contact arrangement | 2NO/2NC(22) |
| Applicable standards | JIS C 8201-5-1, IEC 60947-5-1, EN 60947-5-1, UL 508 (UL listed Certification), CSA 22.2 No.14 (c-UL listed Certification) |
| Applicable wire size | Max.2mm2(Single core ø1.6ø0.063max.)2 wires max. |
| Key removal position | |
| Vibration resistance | Malfunction : 5 to 55 Hz, half amplitude 0.5 mm0.020 inDestruction : 30 Hz, half amplitude 1.5 mm0.059 in |
| Electrical durability | 100,000 operations min. (1,200 operations/hour) |
| Insulation resistance | 100 MΩ min. (500 V DC megger) |
| Mechanical durability | 100,000 operations min. |
| Thermal current (Ith) | 10 A |
| Excess voltage category | II(IEC 60664-1) |
| Maximum operation angle | 90° |
| Inductive load (AC-15)(A600) | 10A |
| Inductive load (DC-13)(P600) | 4A |
| Minimum direct opening torque | 0.4 N・m |
| Rated insulation voltage (Ui) | 600 V |
| Operating condition : Altitude | 2,000 m6,561.68 ftmax. |
| Electric shock protection class | Class II(IEC 61140) |
| Impulse withstand voltage (Uimp) | 4 kV |
| Tightening torque of the locking ring | 2.0 N・m |
| Minimum direct opening operating angle | 90° |
| Operating condition : Ambient humidity | 45 to 85 % RH |
| Operating condition : Pollution degree | 3 |
| Tightening torque of the terminal screws | 1.0 to 1.3 N・m |
| Operating condition : Ambient temperature | -25 to +60℃-13 to + 140 ℉(No dew condensation or icing allowed)Storage : -40 to +80 ℃-40 to +176 ℉ |
| Rated operational voltage (Ue) / Rated operational current (Ie) | Ue24V48V50V110V220V440VIeACResistive load (AC-12)10A-10A10A6A2AInductive load (AC-15)(A600)10A-7A5A3A1ADCResistive load (DC-12)8A4A-2.2A1.1A-Inductive load (DC-13)(P600)4A2A-1.1A0.6A- |
