SG-B2-K2BD-L5

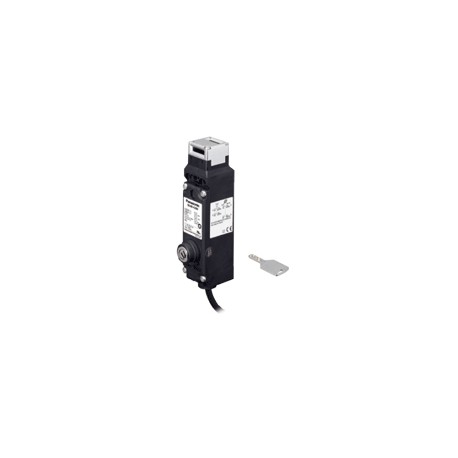

SG-B2-K2BD-L5 PANASONIC Safety door switch with key (2-positions), removable in UNLOCK position, rear unlock..
$0.00USD
3349 in stock
Key Specifications
:Ue
DC:Resistive load (DC-12)
Ie:AC
B10D:2,000,000(ISO 13849-1 Annex C Table C.1)
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Ue | |
| DC | Resistive load (DC-12) |
| Ie | AC |
| B10D | 2,000,000(ISO 13849-1 Annex C Table C.1) |
| Item | Specifications |
| Cable | UL style 2464, No.22 AWG 12-core |
| Weight | Approx. 700 g |
| Product | Safety door switch with key |
| Material | Enclosure : PA66 |
| Protection | IP 65 (IEC 60529) |
| Part Number | SG-B2-K2BD-L5 |
| Cable length | 5m16.404 ft |
| Product name | Safety door switch with key SG-B2 |
| Product Number | SG-B2-K2BD-L5 |
| Interlock force | 1,400 N min. (GS-ET-19)(Note)(500 N min. : SG-K24 actuator)(Note): The actuator locking strength is rated at 1,400 N of static load. Do not apply a load higher than the rated value. When a higher load is expected to work on the actuator, provide an additional system consisting of another safety switch without lock (such as the SG-A1 safety switch) or a sensor to detect door opening and stop the machine. |
| Shock resistance | Malfunction : 100 m/s2, Destruction : 1,000 m/s2 |
| Contact resistance | 700 mΩ max. (initial value, 5 m16.404 ftcable) |
| Contact arrangement | |
| Operating frequency | 900 operations/hour |
| Applicable standards | EN 1088, IEC 60947-5-1, EN 60947-5-1,GS-ET-19, UL 508, CSA C22.2 No.14 |
| Direct opening force | 80 N min. |
| Key removal position | B(removable in UNLOCK position) |
| Vibration resistance | Malfunction : 10 to 55 Hz, half amplitude 0.35 mm0.014 inDestruction : 30 Hz, half amplitude 1.5 mm0.059 in |
| Applicable directives | Machinery directive (2006/42/EC)Low voltage directive (2006/95/EC) |
| Direct opening travel | 11 mm0.433 inmin. (actuator : SG-K21)12 mm0.472 inmin. (for other actuators) |
| Electrical durability | 100,000 operations min. (AC-12, 250 V 1 A)1,000,000 operations min. (AC/DC 24 V 100 mA)(900 operations/hour) |
| Mechanical durability | 1,000,000 operations min. (GS-ET-19)Rear unlocking button : 3,000 operations min. (Type SG-B2-□-L5) |
| Thermal current (Ith) | ・2.5 A・Ambient temperature :-25 to +60 ℃-13 to +140 ℉: 2.5 A max.+60 to +65 ℃+140 to +149 ℉: 1.5 A max.+65 to +70 ℃+149 to +158 ℉: 1.0 A max. |
| Inductive load (AC-15) | - |
| Inductive load (DC-13) | 2.3A |
| Actuator operating speed | 0.05 to 1.0 m/sec. |
| Key : Direct opening force | 0.6 N・m min. |
| Key : Key tensile strength | 1.0 N・m min. |
| Key : Direct opening degree | 60°min. |
| Key : Mechanical durability | 100,000 operations min. |
| Rated insulation voltage (Ui) | 250 V(Note): Ratings approved by UL, c-UL : 125 V |
| Key : Key operating durability | 10,000 operations min. |
| Key : Operating specifications | 2 positions |
| Operating condition : Altitude | 2,000 m6,561.68 ftmax. |
| Electric shock protection class | Class II (IEC 61140)(Note), 回(double-insulated)(Note): Basic insulation of 2.5 kV impulse withstand voltage is ensured between different contact circuits.When both SELV (safety extra low voltage) or PELV (protective extra low voltage) circuits and other circuits (such as 230 V AC circuits) are used for the solenoid power and contact circuits at the same time, the SELV or PELV requirements are not met any more. |
| Short-circuit protective device | Use 250 V / 10 A fast acting type fuse |
| Impulse withstand voltage (Uimp) | 2.5 kV |
| Conditional short-circuit current | 50 A (250 V) |
| Operating condition : Ambient humidity | 45 to 85 % RH |
| Operating condition : Pollution degree | 3 (Inside 2) |
| Applicable standards : Standards for use | IEC 60204-1, EN 60204-1 |
| Operating condition : Ambient temperature | -25 to +70 ℃-13 to +158 ℉(No dew condensation or icing allowed)Storage : -40 to +80 ℃-40 to +176 ℉ |
| Rated operational voltage (Ue) / Rated operational current (Ie) | Ue30V125V250VIeACResistive load (AC-12)-2.5A1.5AInductive load (AC-15)-1.5A0.75ADCResistive load (DC-12)2.5A1.1A0.55AInductive load (DC-13)2.3A0.55A0.27A |
