SFS458

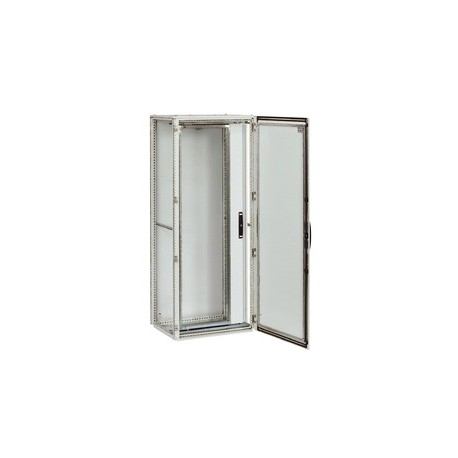

SFS458 ELDON Swing frame side, 2200 SFS458
$0.00USD
4852 in stock
Key Specifications
U:45
H1:2003
H2:2067
H3:2137
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| U | 45 |
| H1 | 2003 |
| H2 | 2067 |
| H3 | 2137 |
| Height | 2200 mm |
| Characteristics | |
| Lock: (Technical data) | Double-bit 3mm espagnolette (other lock options possible). |
| Finish: (Technical data) | RAL 7035 structured powder coating. |
| Material: (Technical data) | Frame zinc plated steel. Panels: 2mm steel plate. |
| Description: (Technical data) | Full height swing frame for 19" components allowing left and right hand opening with grip over the full height. Can be used in MultiFlex enclosures. Hinges designed to give extra build-in depth. Adjustable top hinge for square mounting of the swing frame. Rigid W-shaped frame profile for heavy equipment. Zinc plated frame for direct earthing of the mounted components. Standard equipped with 130° hinges. Full access to the enclosure's aperture can be acquired by use of 180° hinges SFH180. For mounting use transversal support bars SFB. Depth support and easy cable routing is achieved with depth mounting plate SFMP. Adjustable in depth by steps of 12.5mm. Vertical profiles, 2mm and horizontal profiles, 3mm. |
| Pack quantity: (Technical data) | 1 swing frame with hinges. |
| Mounting requirements: (Technical data) | SFS for 800mm, 1000mm wide MultiFlex enclosures. Add SFB for mounting in a MultiFlex enclosure. |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Full height swing frame side mounted for maximum build-in depth.
