SFK0M

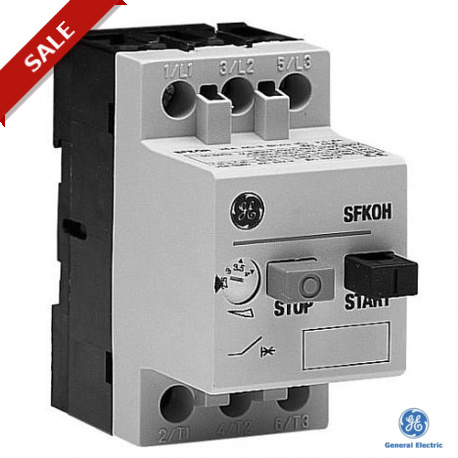

SFK0M 120013 GENERAL ELECTRIC MCPD 20.25A SFKOM
$0.00USD
4927 in stock
Key Specifications
Series:SFK - Thermal and magnetic protection (Ie max 25A)
Fuse at 400V:80
Fuse at 415V:80
Fuse at 500V:63
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Series | SFK - Thermal and magnetic protection (Ie max 25A) |
| Fuse at 400V | 80 |
| Fuse at 415V | 80 |
| Fuse at 500V | 63 |
| Fuse at 690V | 50 |
| Package (pcs) | 1/5 |
| Fuse at 220/230V | 80 |
| ETIM 5.0 (DIMENSIONS) | EC000074 |
| ETIM 6.0 (DIMENSIONS) | EC000074 |
| Weight (SPECIFICATIONS) | 0.193 kg |
| Trip class IEC 60947-4-1 | 10 |
| Magnetical tripping current (A) | 300 A |
| Thermal current setting range (A) | 20 - 25 A |
| Rated power 3 phase motors at 400Vac Pn (kW) | 11 kW |
| Rated power 3 phase motors at 415Vac Pn (kW) | 12.5 kW |
| Rated power 3 phase motors at 500Vac Pn (kW) | 15 kW |
| Rated power 3 phase motors at 690Vac Pn (kW) | 22 kW |
| Rated power 3 phase motors at 220/230Vac Pn (kW) | 5.5 kW |
| Rated service short-circuit breaking cap 400V Ics kA | 2 kA |
| Rated service short-circuit breaking cap 415V Ics kA | 1.25 kA |
| Rated service short-circuit breaking cap 500V Ics kA | 0.75 kW |
| Rated service short-circuit breaking cap 690V Ics kA | 0.5 kA |
| Rated ultimate short-circuit breaking cap 400V Icu kA | 4 kA |
| Rated ultimate short-circuit breaking cap 415V Icu kA | 2.5 kA |
| Rated ultimate short-circuit breaking cap 500V Icu kA | 1.5 kA |
| Rated ultimate short-circuit breaking cap 690V Icu kA | 1 kA |
| Rated service short-circuit breaking cap 220/230V Ics kA | 3 kA |
| Rated ultimate short-circuit breaking cap 220/230V Icu kA | 6 kA |
