SFC366

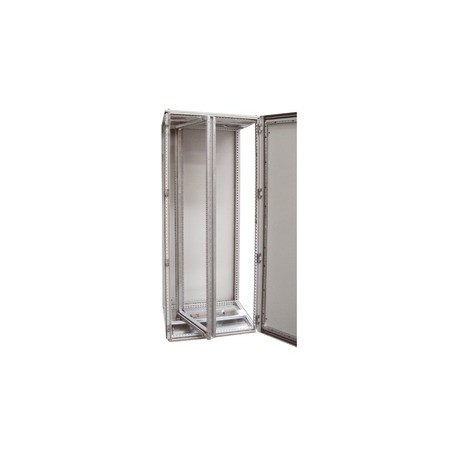

SFC366 ELDON Swing frame, 1800 SFC366
$0.00USD
3428 in stock
Key Specifications
Lock: (Technical data):Two 3mm double-bit locks.
Material: (Technical data):Zinc plated steel.
Description: (Technical data):Full height swing frame for 19" components allowing left and right hand opening. Can be used in MultiFlex enclosures. Hinges designed to give extra build-in depth. Adjustable top hinge for square mounting of the swing frame. Rigid W-shaped frame profile for heavy equipment. Zinc plated frame for direct earthing of the mounted components. Standard equipped with 130° hinges (180° hinges not applicable for 600mm wide enclosures). Can also be mounted on the side of 600mm deep floor standing enclosures. For MultiFlex use transversal support bars SFB in combination with VBD if required. Adjustable in depth by steps of 12.5mm. Vertical profiles, 2mm and horizontal profiles, 3mm.
Pack quantity: (Technical data):1 swing frame with hinges.
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lock: (Technical data) | Two 3mm double-bit locks. |
| Material: (Technical data) | Zinc plated steel. |
| Description: (Technical data) | Full height swing frame for 19" components allowing left and right hand opening. Can be used in MultiFlex enclosures. Hinges designed to give extra build-in depth. Adjustable top hinge for square mounting of the swing frame. Rigid W-shaped frame profile for heavy equipment. Zinc plated frame for direct earthing of the mounted components. Standard equipped with 130° hinges (180° hinges not applicable for 600mm wide enclosures). Can also be mounted on the side of 600mm deep floor standing enclosures. For MultiFlex use transversal support bars SFB in combination with VBD if required. Adjustable in depth by steps of 12.5mm. Vertical profiles, 2mm and horizontal profiles, 3mm. |
| Pack quantity: (Technical data) | 1 swing frame with hinges. |
| Mounting requirements: (Technical data) | SFC for 600mm, 800mm, 1000mm, 1200mm wide MultiFlex enclosures. Add SFB for mounting in a MultiFlex enclosure. |
Product Description
For mounting equipment in an enclosure while having easy access to the back and side by use of swing frame.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Description:
