In Stock Hot Product
SFB0614
SFB0614 ELDON Support bar, 14/18/2200x600 SFB0614
$0.00USD
4267 in stock
Key Specifications
Material: (Technical data):3mm zinc plated steel.

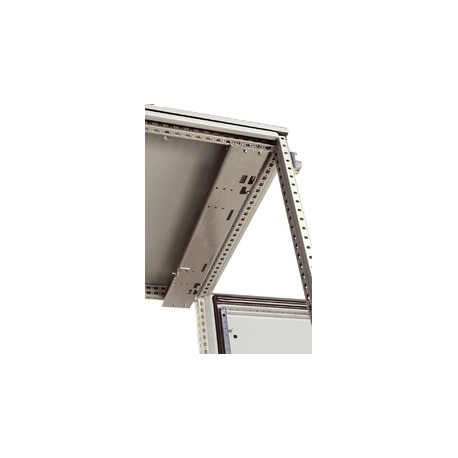

Description: (Technical data):For full height mounting of swing frames in MultiFlex enclosures. When partial height mounting is required use the SFB in combination with CLPK or CLPF. The swing frames can be mounted both left and right hand opening. One man installation with integrated safety catch which holds the swing frame in mounting position (130° hinge). Supplied with aligning wheel for automatic positioning of the swing frame. Pre-punched holes for mounting a door switch (DSW01) and enclosure light (LTL14xx) are provided in the top swing frame support with W>600mm and with SFS or SFM swing frames.
Pack quantity: (Technical data):One complete kit for a swing frame.
Mounting requirements: (Technical data):Support bars (SFB) 600mm wide can also be mounted directly into a 1200mm wide enclosure by means of a VBD. Support bars (SFB) 800mm wide can also be mounted directly in 1600mm wide enclosures.
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Material: (Technical data) | 3mm zinc plated steel. |
| Description: (Technical data) | For full height mounting of swing frames in MultiFlex enclosures. When partial height mounting is required use the SFB in combination with CLPK or CLPF. The swing frames can be mounted both left and right hand opening. One man installation with integrated safety catch which holds the swing frame in mounting position (130° hinge). Supplied with aligning wheel for automatic positioning of the swing frame. Pre-punched holes for mounting a door switch (DSW01) and enclosure light (LTL14xx) are provided in the top swing frame support with W>600mm and with SFS or SFM swing frames. |
| Pack quantity: (Technical data) | One complete kit for a swing frame. |
| Mounting requirements: (Technical data) | Support bars (SFB) 600mm wide can also be mounted directly into a 1200mm wide enclosure by means of a VBD. Support bars (SFB) 800mm wide can also be mounted directly in 1600mm wide enclosures. |
Product Description
For mounting the full height swing frames inside nVent HOFFMAN enclosures.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Description:
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
