SF-7ES1N8AY000

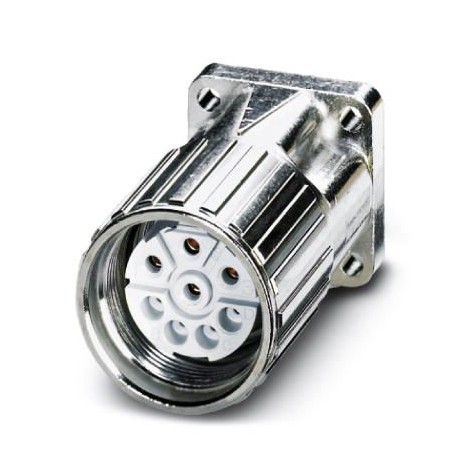

SF-7ES1N8AY000 1605622 PHOENIX CONTACT Device connector, front mounting with knurled nut
$0.00USD
3538 in stock
Key Specifications
GTIN:4046356254014
Note:Made to Order (non-returnable)
Orderkey:1605622
Catalog page:Page 155 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356254014 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1605622 |
| Catalog page | Page 155 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| Coding (Key Commercial Data) | N |
| Ambient temperature (General) | -40 °C ... 125 °C |
| Degree of protection (General) | IP67 |
| Installation height max. (Material) | 3000 m |
| Mounting type (Key Commercial Data) | 4x Ø 3.2 |
| Weight per Piece (excluding packing) | 68.100 g |
| Conductor entry (Key Commercial Data) | 0 mm ... 0 mm |
| Housing material (Ambient conditions) | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Type of locking (Key Commercial Data) | Screw locking |
| Type of contacts (Key Commercial Data) | Socket |
| Insulator material (Ambient conditions) | PA 6.6 |
| Number of positions (Key Commercial Data) | 8 |
| Contact connection method (Key Commercial Data) | Crimp connection |
| Gasket and O-ring material (Ambient conditions) | FPM |
| (Specifications according to DIN EN 61984:2001) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Degree of pollution of power contacts (Material) | 3 |
| Rated surge voltage of power contacts (Material) | 6 kV |
| Degree of pollution of signal contacts (Material) | 3 |
| Overvoltage category of power contacts (Material) | III |
| Pg housing screw connection (Key Commercial Data) | none |
| Rated surge voltage of signal contacts (Material) | 4 kV |
| Overvoltage category of signal contacts (Material) | III |
| Contact diameter of power contacts (Key Commercial Data) | 2 mm |
| Nominal / operating voltage of power contacts (Material) | 630 V |
| Contact diameter of signal contacts (Key Commercial Data) | 1 mm |
| Nominal / operating voltage of signal contacts (Material) | 250 V |
| China RoHS (Specifications according to DIN EN 61984:2001) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Specifications according to DIN EN 61984:2001) | Lead 7439-92-1 |
| Nominal current per power contact at 25°C (Key Commercial Data) | 30 A |
| Nominal current per signal contact at 25°C (Key Commercial Data) | 9 A |
Product Description
Plug-in connector for front wall appliances with knurled nut, straight, Screw lock, M23, number of poles: 4+3+PE, contact type: Female, Axial O-ring, 4x Ø 3.2, shielded: yes, flange measurement: 26mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
