SF-7ES1N8A80DUS

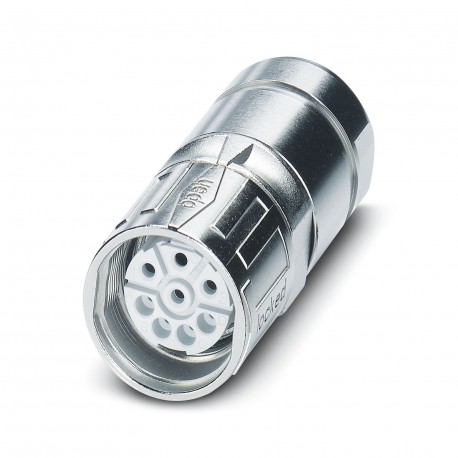

SF-7ES1N8A80DUS 1618207 PHOENIX CONTACT Cable connector
$0.00USD
4388 in stock
Key Specifications
GTIN:4046356584555
Note:Made to Order (non-returnable)
Orderkey:1618207
Catalog page:Page 152 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356584555 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1618207 |
| Catalog page | Page 152 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| Coding (Key Commercial Data) | N |
| Ambient temperature (General) | -40 °C ... 125 °C |
| Degree of protection (General) | IP67 |
| Weight per Piece (excluding packing) | 120.000 g |
| Conductor entry (Key Commercial Data) | 7.5 mm ... 14 mm |
| Type of locking (Key Commercial Data) | SPEEDCON locking |
| Type of contacts (Key Commercial Data) | Socket |
| Number of positions (Key Commercial Data) | 8 |
| Installation height max. (Ambient conditions) | 3000 m |
| Contact connection method (Key Commercial Data) | Crimp connection |
| (Specifications according to DIN EN 61984:2001) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Pg housing screw connection (Key Commercial Data) | none |
| Contact diameter of power contacts (Key Commercial Data) | 2 mm |
| Contact diameter of signal contacts (Key Commercial Data) | 1 mm |
| China RoHS (Specifications according to DIN EN 61984:2001) | Environmentally Friendly Use Period = 50 |
| Degree of pollution of power contacts (Ambient conditions) | 3 |
| REACh SVHC (Specifications according to DIN EN 61984:2001) | Lead 7439-92-1 |
| Rated surge voltage of power contacts (Ambient conditions) | 6 kV |
| Degree of pollution of signal contacts (Ambient conditions) | 3 |
| Overvoltage category of power contacts (Ambient conditions) | III |
| Rated surge voltage of signal contacts (Ambient conditions) | 4 kV |
| Overvoltage category of signal contacts (Ambient conditions) | III |
| Nominal current per power contact at 25°C (Key Commercial Data) | 30 A |
| Nominal current per signal contact at 25°C (Key Commercial Data) | 9 A |
| Nominal / operating voltage of power contacts (Ambient conditions) | 630 V |
| Nominal / operating voltage of signal contacts (Ambient conditions) | 250 V |
| Litz wire cross section of power contacts max. (Key Commercial Data) | 4 mm² |
| Litz wire cross section of power contacts min. (Key Commercial Data) | 0.25 mm² |
| Litz wire cross section of signal contacts max. (Key Commercial Data) | 1 mm² |
| Litz wire cross section of signal contacts min. (Key Commercial Data) | 0.06 mm² |
Product Description
Plug connector. for cables, Straight short, SPEEDCON lock, M23, number of poles: 4+3+PE, contact type: Female, shielded: yes, protection index: IP67, cable diameter range: 7.5 mm ... 14 mm, number of
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
