SF-5EP1N8AA500

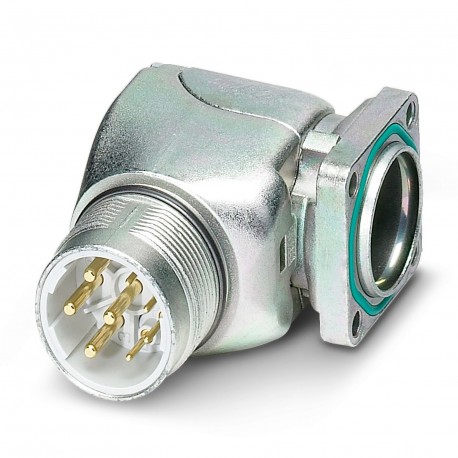

SF-5EP1N8AA500 1620657 PHOENIX CONTACT Device connector, front mounting
$0.00USD
4225 in stock
Key Specifications
:• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
Type:angled rotatable
Coding:N
Series:SF
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. | |
| Type | angled rotatable |
| Coding | N |
| Series | SF |
| Altitude | 3000 m |
| Mounting | 4x Ø 3.2 |
| Shielded | yes |
| Application | Power |
| Head design | Pin |
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Thread type | M23 |
| Max. current | 30 A |
| Product type | Circular connectors (device side) |
| Mounting type | Front mounting |
| Seal material | FPM |
| Article revision | 06 |
| Contact diameter | 2 mm |
| Housing material | Metal |
| Connection method | Crimp connection |
| Flange dimensions | 26 mm x 26 mm |
| Connection profile | 5+PE |
| Nominal voltage UN | 630 V |
| Order information: | Order crimp contacts 6 x Ø 2 mm separately |
| Degree of pollution | 3 |
| Number of positions | 6 |
| Rated surge voltage | 6 kV |
| Degree of protection | IP67 |
| Overvoltage category | III |
| Contact connection type | Pin |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | 15 °C ... 25 °C |
| Permissible humidity (storage/transport) | 50 % ... 65 % |
Product Description
Conect. plug. to be apar. front wall, Swivel angle, for standard and SPEEDCON lock, M23, number of poles: 5+PE, contact type: Male, Axial O-ring, 4x Ø 3.2, shielded: yes, flange size: 26mm x 26mm, pro
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
