SDR-480-24

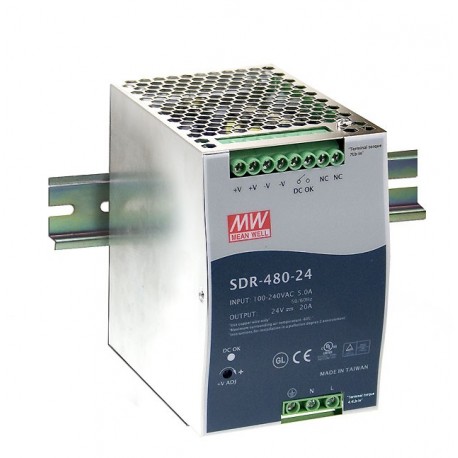

SDR-480-24 MEANWELL AC-DC Industrial DIN rail power supply, Output 24VDC / 20A, Metal casing, Ultra slim wid..
$131.01USD
106 in stock
Key Specifications
Name:SDR-480-24
State:Recommended Model
Alarms:Output OK
Format:Din Rail
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | SDR-480-24 |
| State | Recommended Model |
| Alarms | Output OK |
| Format | Din Rail |
| Series | SDR-480 |
| Approvals | EC, GL - Germanischer Lloyd, UL |
| Power (W) | 480,00 |
| Subformato | Narrow |
| Width (mm) | 85.50 |
| Height (mm) | 125.20 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Industrial, Naval, Telecom |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 24,00 |
| Peak Power (W) | Seven hundred twenty |
| Input connector | Screw-Type |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 128.50 |
| Long Description | Switching Power supply for Din Rail.Format to install on a Din Rail.Range of universal Input90-264vac47-63Hz.Output voltage24vdc.(Adjustable with potentiometer 24-28Vcc).Output intensity:20A.Range of output current 0-20A according to demand load.Peak intensity: 30A. A maximum of 3 seconds. See the technical sheet for the repeat cycles.Power:480W.Peak Power:720W. Maximum3 seconds. See the technical sheet for the repeat cycles.Factor Corrector, Power>0,94.Alarm output voltage to the correct DC-Ok.Efficiency:94%.Working temperature: from-25up+70ºCof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Width x Height x depth):85,5 x 125,2 x 128,5 mm3 years of warranty.Manufacturer: MEANWELL.The series SDR are power sources, DIN rail, metal, single phase.With wide input range have a compact size, high efficiency up to 94%, and PFC function is active.Can be installed on DIN rail TS-35 / 7,5 or 15.Among its features we have a peak load of between 130-150%, signal using relay DC OK or function of load distribution in the models of 480/960W. |
| Output connector | Screw-Type |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Switching Power supply for Din Rail.
