In Stock Hot Product
SD-WMTB (111X10) VA

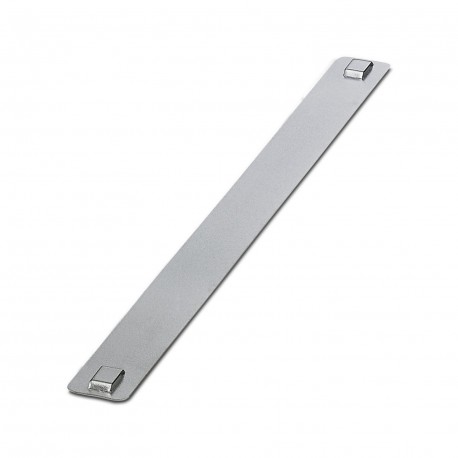

SD-WMTB (111X10) VA 0826608 PHOENIX CONTACT Carrier for conductor marking collar
$0.00USD
3317 in stock
Key Specifications
:DIN EN 62208 (VDE 0660-511):2012-06 (in parts)
Type:Marking strip/label
Color:silver
Width:10 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| DIN EN 62208 (VDE 0660-511):2012-06 (in parts) | |
| Type | Marking strip/label |
| Color | silver |
| Width | 10 mm |
| Length | 111 mm |
| Result | Test passed |
| Material | Stainless steel |
| Shelf life | 24 months |
| Product type | Marker carrier cable |
| Requirements | ≥ 5 N |
| Mounting type | Assembly with cable ties |
| Specification | DIN EN ISO 1518-1:2019-10 (following) |
| Test duration | 96 h |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Article revision | 00 |
| Outside diameter | 10 mm ... 305 mm |
| Text field width | 111.00 mm |
| Text field height | 10.00 mm |
| External cable diameter | > 16.00 mm |
| Isopropyl[CAS No. 67-63-0] | Test passed |
| n-Hexane[CAS No. 110-54-3] | Test passed |
| Ambient temperature (operation) | -80 °C ... 400 °C |
| Recommended humidity (storage/transport) | 50 % (Storage in a dry and dark place in the original packaging is recommended) |
| Water + Petroleum ether[CAS No. 64742-82-1] | Test passed |
| Recommended ambient temperature (storage/transport) | 23 °C |
Product Description
Conductor identification sleeve holder, silver, unlabeled, mounting class: Mounting with cable ties, cable diameter: > 16 mm, usable surface: 111 x 10 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
