SD-100C-5

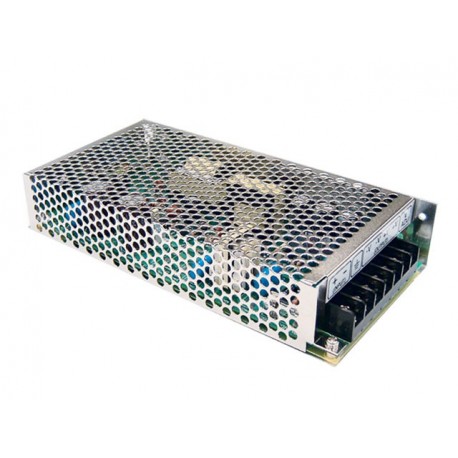

SD-100C-5 MEANWELL DC-DC Enclosed converter, Input 36-72VDC, Output +5VDC / 20A, Free air convection
$36.20USD
314 in stock
Key Specifications
Name:SD-100C-5
State:Recommended Model
Stock:Yes
Format:Box
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | SD-100C-5 |
| State | Recommended Model |
| Stock | Yes |
| Format | Box |
| Series | SD-100 |
| Approvals | EC |
| Power (W) | 100,00 |
| Subformato | Grid |
| Width (mm) | 98.00 |
| Height (mm) | 38.00 |
| Input range | 2:1 |
| Applications | Industrial, Telecommunications |
| DC input Max | 72,00 |
| DC input Min | 36,00 |
| Manufacturer | MEAN WELL |
| Product type | Dc/DC converters |
| Isolation (V) | 1.500,00 |
| Output voltage | 5,00 |
| Peak Power (W) | One hundred |
| Range DC Input | 36, 36,4, 38,4, 40, 43, 46,8, 50, 50,4, 52, 56, 60, 62,4, 64,4, 67,2, 72 |
| Input connector | Cable |
| Long/Background | 199.00 |
| Long Description | Dc/DC converter is a regulated isolated output.Format box grid/trascuadro.Input range36-72Vcc.Output voltage5vdc. Adjustable by potentiometer (4,5-5,5 Vdc).Output intensity:20A.Power:100W.Isolation input-output 1500Vca.Efficiency of the75%.Operating temperature from-10up+60 ° C(see the curve derived in the technical data sheet).Dimensions(Length x Width x Height):199 x 98 x 38mm.2 years of warranty.Manufacturer: MEAN WELL.Converter ideal for all types of applications. It is designed to give an isolated output, and stabilized.It allows us to give an output reliable when we have an entry from a battery or from any other computer that can easily swing in addition to achieving isolation between input and output. |
| Output connector | Cable |
| Warranty (Years) | 2,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Dc/DC converter is a regulated isolated output.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
