In Stock Hot Product
SCP-75-24

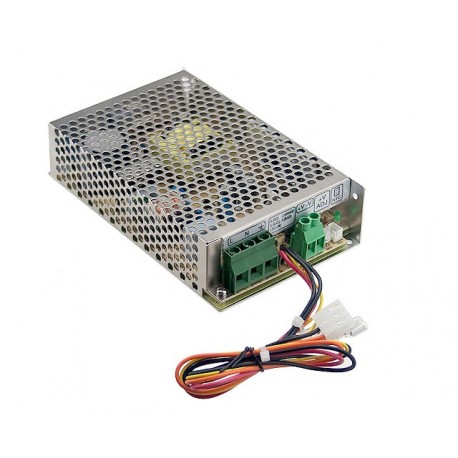

SCP-75-24 MEANWELL AC-DC Enclosed power supply, Output 27.6VDC / 2.7A, battery charger output, battery tempe..
$23.70USD
463 in stock
Key Specifications
Oh:7, 8, 9, 10, 12, 15, 20, 24, 25, 26
Name:SCP-75-24
Stock:Yes
Alarms:Input fault
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Oh | 7, 8, 9, 10, 12, 15, 20, 24, 25, 26 |
| Name | SCP-75-24 |
| Stock | Yes |
| Alarms | Input fault |
| Format | Box |
| Series | SCP-75 |
| Output 1 | +24 |
| Approvals | CE, UL |
| Power (W) | 74,50 |
| Subformato | Grid |
| Width (mm) | 97.00 |
| Height (mm) | 38.00 |
| Applications | Building automation, Industrial, Telecommunications |
| Battery type | Lead, AGM, Wet |
| Manufacturer | MEAN WELL |
| Product type | UPS |
| Charge stages | Two |
| Isolation (V) | 3.000,00 |
| Peak Power (W) | 74.5 |
| Input connector | Screw-Type |
| Long/Background | 159.00 |
| Long Description | UPS input switches and output continuously.Format box of the grid.Range of universal input85-264vac. 47-63Hz.Output voltagefor the loadwith power: 27,6 Vdc.Output voltage in battery mode: voltage of the battery.Output intensity2.7 To. Peak 3.2 To 5s.Float voltageadjustableA 26.2-31,7 Vdc. (The setting of the float voltage also adjusts the output voltage of power supply).Intensity of load2.7 To.Power:74,5 W.Type of batteries:Gel, AGM and wet.Battery capacity:7-26Ah.Efficiency typical:84%at full load with power.Protection against deep discharge of the batteries.No cut in output in the step feed mode to battery mode. 0ms transfer time.Compensation of the charging voltage by temperature.Alarm power correct the AC-OK.Consumption at no load <0,75 W.LED to indicate proper output DC-OK.Working temperature: from-20up+60 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:159 x 97 x 38.2 years of warranty.Manufacturer: MEAN WELL.Series SCP-75 are Ups input switches and output continuously. When there is mains power the computer gives a stable output for the connected loads and to charge the batteries. This output is common, so that the intensity maximum including load current and connected equipment may not exceed what is specified. In case of failure of power supply maintains the output fed from the battery. These power supplies are suitable for security applications, access control and any application that must continue to function even with a power outage.These are protected against overloads, short-circuit in the output, sobrentesión output, low battery and reverse battery polarity (by fuse).The series SCP incorporates connectors faston for connecting the battery directly. It can also compensate the load voltage according to the battery temperature (NTC sensor not included). |
| Output connector | Screw-Type, Plug-In, |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 2,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
UPS input switches and output continuously.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
