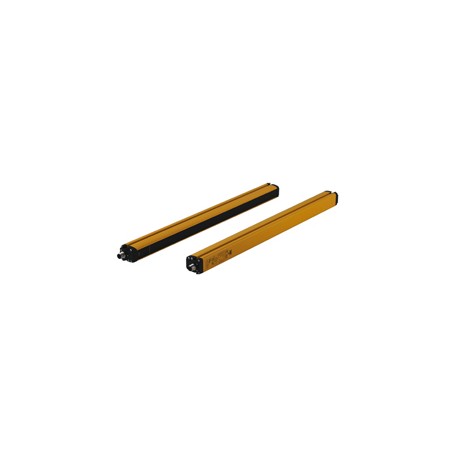

Safety Light CurtainType SC4Hand Series•Integrated light curtain for handprotection (30 mm resolution)• Up to 19m operating distance• Controlled heights ranging from 150 to 1650 mm• Compact profile 32x 37mm• Selectable EDM and Manual ! Automatic Restart• Ideal for Industrial Applications, such as:- Automatic machines- Packaging and Cutting machines- Textile- Wood-working and Ceramic machines- Automatic Assembling lines- Milling, lathe and shearing machines- Bending and metal working machinesApprovalsOrdering KeySC 4 ED 30300 D19Product DescriptionSafety Light CurtainsCategoryFunction(ED: External Device Monitoring)Resolution Protected height Operating distanceThe SC4 range of 30mm finger resolution simplifies installation, connection and use.Installation simplification, vianew rotating fixing brackets to ease alignment.Model SelectionConnection simplification, using standard connectors, making no connection between emitter and receiver necessary. Usesimplification, featuring alignment guided by a 7 segment doubledisplayonboth the emitter and the receiver. Itsnew sturdy and more functional compact body (32x37mm profile) together with the selectable EDM and Manual/Automatic Restart function, its improved responsetime, and the full compatibility with the former SB range make the new SC4 range one of the best performing safety light curtains for industrial applications.Model DescriptionSC4SC4-ED-30-150-D19Type 4 safety light curtain h=150mm SC4-ED-30-300-D19Type 4 safety light curtain h=300mm SC4-ED-30-450-D19Type 4 safety light curtain h=450mm SC4-ED-30-600-D19Type 4 safety light curtain h=600mm SC4-ED-30-750-D19Type 4 safety light curtain h=750mm SC4-ED-30-900-D19Type 4 safety light curtain h=900mm SC4-ED-30-1050-D19Type 4 safety light curtain h=1050mm SC4-ED-30-1200-D19Type 4 safety light curtain h=1200mm SC4-ED-30-1350-D19Type 4 safety light curtain h=1350mm SC4-ED-30-1500-D19Type 4 safety light curtain h=1500mm SC4-ED-30-1650-D19Type 4 safety light curtain h=1650mmGeneral DataPower Supply24VDC ± 20% Consuption (emitter)2.5W max Consuption (receiver) 4 max (without load) OSSD output 2 PNPShort-circuit protection1.4 A maxOutput current 0.5A max on each outputOutput voltage - ON statusVdd - 1V min Output voltage - OFF status0.2 V Leakage current< 1mACapacitive load 2.2uF @ 24VDC maxResponse timeRefer to table in page 4Controlled height300... 1650 mmSafety category Type 4Auxiliary functionsReset / TestSelectable Man./Auto RestartSelectable EDM Electrical protection Class I / Class II ConnectionM12 4-pole for emitterM12 8-pole for receiverCable lenght50m max1 Specifications are subject to change without notice. Pictures are just an example. For special features and/or customization, please ask to our sales network. 03/10/2014
