In Stock Hot Product
SB400

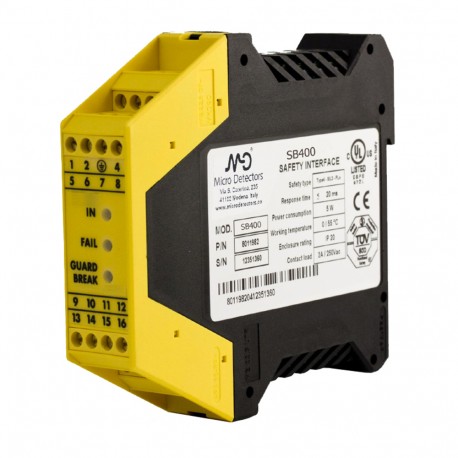

SB400 MICRO DETECTORS Relay module
$0.00USD
3635 in stock
Key Specifications
PL:d (2A@230VAC; 1 comm. @30s)e (2A@230VAC; 1 comm. @60s)e (2A@230VAC; 1 comm. @1h)e (2A@230VAC; 1 comm. @24h)d (0,5A@230VAC; 1 comm. @30s)d (0,5A@230VAC; 1 comm. @60s)e (0,5A@230VAC; 1 comm. @1h)e (0,5A@230VAC; 1 comm. @24h)
CFF:80%
SIL:4
PFHd:2,64E-08 (2A@230VAC; 1 comm. @30s)1,55E-08 (2A@230VAC; 1 comm. @60s)4,93E-09 (2A@230VAC; 1 comm. @1h)4,77E-09 (2A@230VAC; 1 comm. @24h)4,86E-08 (0,5A@230VAC; 1 comm. @30s)2,64E-08 (0,5A@230VAC; 1 comm. @60s)5,11E-09 (0,5A@230VAC; 1 comm. @1h)4
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| PL | d (2A@230VAC; 1 comm. @30s)e (2A@230VAC; 1 comm. @60s)e (2A@230VAC; 1 comm. @1h)e (2A@230VAC; 1 comm. @24h)d (0,5A@230VAC; 1 comm. @30s)d (0,5A@230VAC; 1 comm. @60s)e (0,5A@230VAC; 1 comm. @1h)e (0,5A@230VAC; 1 comm. @24h) |
| CFF | 80% |
| SIL | 4 |
| PFHd | 2,64E-08 (2A@230VAC; 1 comm. @30s)1,55E-08 (2A@230VAC; 1 comm. @60s)4,93E-09 (2A@230VAC; 1 comm. @1h)4,77E-09 (2A@230VAC; 1 comm. @24h)4,86E-08 (0,5A@230VAC; 1 comm. @30s)2,64E-08 (0,5A@230VAC; 1 comm. @60s)5,11E-09 (0,5A@230VAC; 1 comm. @1h)4 |
| Type | 4 |
| Dcavg | 98,92% (2A@230VAC; 1 comm. @30s)98,85% (2A@230VAC; 1 comm. @60s)97,24% (2A@230VAC; 1 comm. @1h)96,89% (2A@230VAC; 1 comm. @24h)98,96% (0,5A@230VAC; 1 comm. @30s)98,92% (0,5A@230VAC; 1 comm. @60s)97,51% (0,5A@230VAC; 1 comm. @1h)96,91% (0,5A@23 |
| MTTFd | 26,06 (2A@230VAC; 1 comm. @30s)50,29 (2A@230VAC; 1 comm. @60s)100 (2A@230VAC; 1 comm. @1h)100 (2A@230VAC; 1 comm. @24h)13,28 (0,5A@230VAC; 1 comm. @30s)26,06 (0,5A@230VAC; 1 comm. @60s)100 (0,5A@230VAC; 1 comm. @1h)100 (0,5A@230VAC; 1 comm. @2 |
| SILCL | 4 |
| Approvals | CE, cULus, TÜV |
| Dimensions | 22,5 x 99 x 114,5 mm |
| Connections | terminals |
| Description | Cat. 4 Safety Module |
| Output type | 2 x relay NO (OSSD safety output)1 x NO, 100mA, 24V (System Status) |
| Usable with | Safety light curtains: LS2, LS4, LP4 |
| Load current | 2A @ 250V |
| Response time | ≤ 20ms |
| EMC compatibility | According to 2014/30/EU Directive |
| Operating Voltage | 24Vdc ± 20% |
| Power Consumption | ≤ 5W |
| Function Principle | Control unit |
| Available functions | Manual/Automatic Restart, EDM, System Status |
| Degree of protection | IP20 |
| Operating temperature | 0°C … + 55°C |
| Cable Length (sensors) | ≤ 100m |
| Nominal sensing distance | According to the sensors used:LS2 up to 12mLS4 up to 20m |
| Max. number of sensors connected | 1 x LS2/LS4 receiver |
| Cabel Length (Power Supply/Output) | ≤ 100m |
Product Description
SB400 Relay module
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
