SB-8ESCD8A8L34S

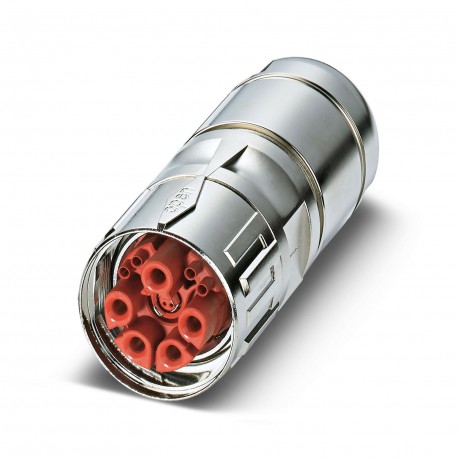

SB-8ESCD8A8L34S 1623685 PHOENIX CONTACT Cable connector
$0.00USD
3966 in stock
Key Specifications
GTIN:4055626194035
Note:Made to Order (non-returnable)
Orderkey:1623685
Catalog page:Page 126 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626194035 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1623685 |
| Catalog page | Page 126 (C-2-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| (Cable seal data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Custom tariff number | 85366990 |
| Coding (Temperature range) | CAT5, coding 2 |
| China RoHS (Cable seal data) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Cable seal data) | Lead 7439-92-1 |
| Cable diameter (Housing data) | 20.5 mm ... 26.5 mm |
| Data rate (Temperature range) | 100 Mbps |
| Application (Temperature range) | Hybrid |
| Sealing material (Housing data) | FKM |
| Type of contacts (Temperature range) | Socket |
| Weight per Piece (excluding packing) | 22.220 g |
| Degree of pollution (Temperature range) | 3 |
| Number of positions (Temperature range) | 13 |
| Rated surge voltage (Temperature range) | 1.5 kV |
| Overvoltage category (Temperature range) | III |
| Thread type (Data of the insulating body) | M40 |
| Contact connection method (Temperature range) | Crimp connection |
| Type of locking (Data of the insulating body) | SPEEDCON locking |
| Housing material (Data of the insulating body) | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Contact diameter, data contacts (Temperature range) | 0.8 mm |
| Ambient temperature (operation) (Key Commercial Data) | -40 °C ... 130 °C |
| Contact diameter of power contacts (Temperature range) | 3.6 mm |
| Rated voltage (II/3) power contact (Temperature range) | 850 V DC |
| Rated voltage (III/3) data contact (Temperature range) | 50 V |
| Contact diameter of signal contacts (Temperature range) | 1 mm |
| Rated voltage (III/3) power contact (Temperature range) | 630 VòAC |
| Rated voltage (III/3) signal contact (Temperature range) | 500 V |
| Nominal current per data contact at 25°C (Temperature range) | 3.6 A |
| Nominal current per power contact at 25°C (Temperature range) | 70 A |
| Nominal current per signal contact at 25°C (Temperature range) | 8 A |
| Litz wire cross section, data contacts, max. (Temperature range) | 0.5 mm² |
| Litz wire cross section, data contacts, min. (Temperature range) | 0.08 mm² |
| Litz wire cross section of power contacts max. (Temperature range) | 16 mm² |
| Litz wire cross section of power contacts min. (Temperature range) | 1 mm² |
| Litz wire cross section of signal contacts max. (Temperature range) | 1.5 mm² |
| Litz wire cross section of signal contacts min. (Temperature range) | 0.06 mm² |
| Degree of protection (when plugged in) (Data of the insulating body) | IP68/IP69K |
Product Description
M40, Plug connector. for cables, SB, long straight, shielded: yes, SPEEDCON lock, No. of poles: 4+4+4+PE / 3+N+PE, Direction of rotation: Standard, contact type: Female, Crimped connection, cable diam
