SB-8ES6D8A9L33S

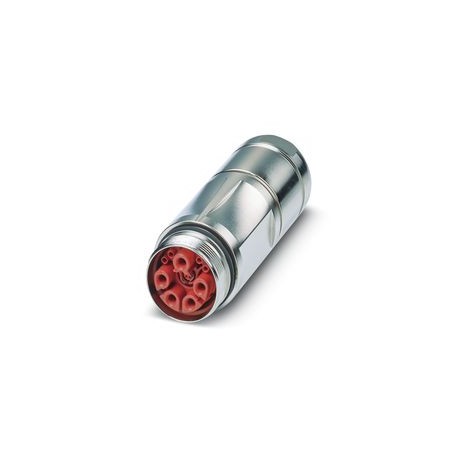

SB-8ES6D8A9L33S 1315005 PHOENIX CONTACT M40, Mating connector, series: SB, long straight, shielded: yes, for..
$142.48USD
102 in stock
Key Specifications
:• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
Note:at an ambient temperature of 15°C, see derating curve
Application:Hybrid
Safety note:WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. | |
| Note | at an ambient temperature of 15°C, see derating curve |
| Application | Hybrid |
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Thread type | M40 |
| Product type | Circular connector (cable-side) |
| Rated voltage | 630 V AC |
| Seal material | FKM |
| Type of locking | for standard and SPEEDCON interlock |
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Connection method | Crimp connection |
| Connection profile | 6+4+4+PE, 6-pos. data element |
| Degree of pollution | 3 |
| Installation height | 2000 m |
| Number of positions | 15 |
| Pg screw connection | none |
| Rated surge voltage | 6 kV |
| Overvoltage category | III |
| Direction of rotation | Standard |
| Contact switching type | Socket |
| External cable diameter | 14 mm ... 20.5 mm |
| Rated currentPower contacts | 70 A |
| Contact diameter Data contacts | 0.6 mm |
| Contact diameterPower contacts | 3.6 mm |
| Ambient temperature (operation) | -40 °C ... 115 °C |
| Contact diameterSignal contacts | 1 mm |
| Degree of protection (plugged in) | IP68/IP69K |
| Nominal current per signal contact | 8 A |
| Rated voltage (II/3) power contact | 850 V DC |
| Rated voltage (III/3) power contact | 630 V AC |
| Rated voltage (III/3) signal contact | 500 V |
| Rated current per data contact at 25°C | 2 A |
| Litz wire cross-sectionPower contactsmax. | 16 mm² |
| Litz wire cross-sectionPower contactsmin. | 1 mm² |
| Litz wire cross-section Data contacts max. | 0.25 mm² |
| Litz wire cross-section Data contacts min. | 0.08 mm² |
| Litz wire cross-sectionSignal contactsmax. | 1.5 mm² |
| Litz wire cross-sectionSignal contactsmin. | 0.06 mm² |
Product Description
M40, Coupling Plug-in Connector, SB, Long Straight, Shielded: Yes, For Standard Lock & SPEEDCON, No. of Poles: 6+4+4+PE, 6-Pole Data Element, Direction of Rotation: Standard, Contact Type: Female, Cri
