SB-8EP0A8A9L34SX

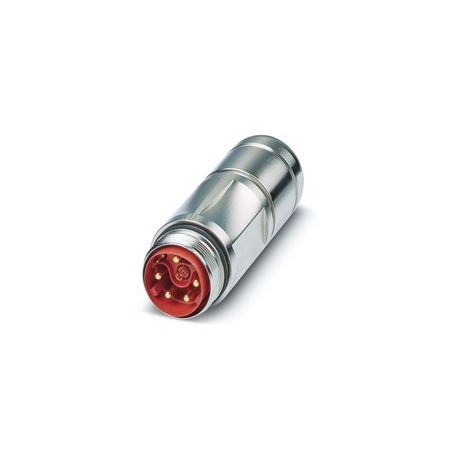

SB-8EP0A8A9L34SX 1238439 PHOENIX CONTACT M40, Plug-in mating connector, SB, long straight, shielded: yes, fo..
$135.68USD
114 in stock
Key Specifications
:• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
Note:for max. connection cross section
Coding:Signal, coding 1
Application:Power
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. | |
| Note | for max. connection cross section |
| Coding | Signal, coding 1 |
| Application | Power |
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Thread type | M40 |
| Product type | Circular connector (cable-side) |
| Rated voltage | 630 V AC |
| Seal material | FKM |
| Type of locking | for standard and SPEEDCON interlock |
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Connection method | Crimp connection |
| Connection profile | 4+4+PE / 3+N+PE |
| Degree of pollution | 3 |
| Installation height | 2000 m |
| Number of positions | 9 |
| Pg screw connection | none |
| Rated surge voltage | 6 kV |
| Overvoltage category | III |
| Direction of rotation | Standard |
| Contact switching type | Pin |
| External cable diameter | 20.5 mm ... 26.5 mm |
| Insulation body material | PA 6.6 |
| Insertion/withdrawal cycles | 100 |
| Rated currentPower contacts | 70 A |
| Rated voltage Signal contact | 500 V |
| Contact diameterPower contacts | 3.6 mm |
| Ambient temperature (operation) | -40 °C ... 115 °C (see derating curve) |
| Contact diameterSignal contacts | 1 mm |
| Degree of protection (plugged in) | IP68/IP69K |
| Nominal current per signal contact | 8 A |
| Rated voltage (II/3) power contact | 850 V DC |
| Rated voltage (III/3) power contact | 630 V AC |
| Rated voltage (III/3) signal contact | 500 V |
| Litz wire cross-sectionPower contactsmax. | 16 mm² |
| Litz wire cross-sectionPower contactsmin. | 2.5 mm² |
| Litz wire cross-sectionSignal contactsmax. | 1.5 mm² |
| Litz wire cross-sectionSignal contactsmin. | 0.06 mm² |
Product Description
M40, Coupler connector,series: SB, straight long, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 4+4+PE / 3+N+PE, Direction of rotation: Standard, contact connection type: Pin, Crimp
