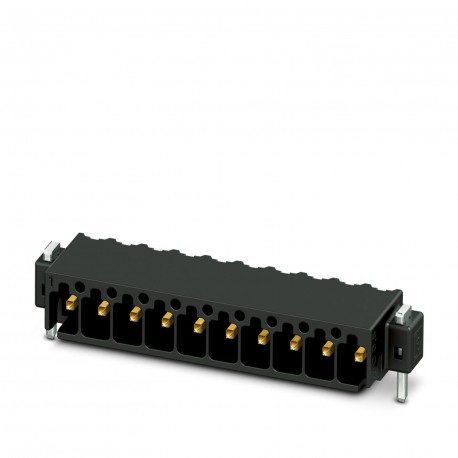

SAMPLE MC 0,5/15-G-2,54 SMD
SAMPLE MC 0,5/15-G-2,54 SMD 1859314 PHOENIX CONTACT PCB headers, nominal current: 6 A, rated voltage (III/2)..
$0.00USD
3991 in stock
Key Specifications
GTIN:4055626082899
Orderkey:1859314
Packing unit:1
ETIM 5.0 (eCl@ss):EC002637
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626082899 |
| Orderkey | 1859314 |
| Packing unit | 1 |
| ETIM 5.0 (eCl@ss) | EC002637 |
| ETIM 6.0 (eCl@ss) | EC002637 |
| ETIM 7.0 (eCl@ss) | EC002637 |
| Color (Dimensions) | black |
| UNSPSC 13.2 (ETIM) | 39121409 |
| Custom tariff number | 85366930 |
| Pitch (Key Commercial Data) | 2.54 mm |
| Width (Key Commercial Data) | 42.68 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 4.85 mm |
| Length (Key Commercial Data) | 7.1 mm |
| eCl@ss 5.1 (Classifications) | 27260700 |
| eCl@ss 6.0 (Classifications) | 27260700 |
| eCl@ss 7.0 (Classifications) | 27440402 |
| eCl@ss 8.0 (Classifications) | 27440402 |
| eCl@ss 9.0 (Classifications) | 27440402 |
| Range of articles (Dimensions) | MC 0,5/..-G-SMD |
| Nominal current IN (Dimensions) | 6 A |
| Number of positions (Dimensions) | 15 |
| Dimension a (Key Commercial Data) | 35.56 mm |
| Width [ w ] (Key Commercial Data) | 42.68 mm |
| Height [ h ] (Key Commercial Data) | 4.85 mm |
| Length [ l ] (Key Commercial Data) | 7.1 mm |
| Rated voltage (III/2) (Dimensions) | 160 V |
| Rated voltage (III/3) (Dimensions) | 32 V |
| Pin dimensions (Key Commercial Data) | 0.64 x 0.64 mm |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Insulating material group (Dimensions) | IIIa |
| Connection in acc. with standard (General) | EN-VDE |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Length of the solder pin (Key Commercial Data) | 2 mm |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Dimensions) | V0 |
Product Description
Printed circuit board base housing, nominal section: 0.5 mm2, nominal current: 6 A, nominal voltage (III/2): 160 V, contact surface: Au, contact connection type: Male, number of potentials: 15, number
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
PCB headers, nominal current: 6 A, rated voltage (III/2): 160 V, number of positions: 15, pitch: 2.54 mm, color: black, contact surface: Gold, mounting: SMD soldering, Sample values available under SAMPLE MC...
