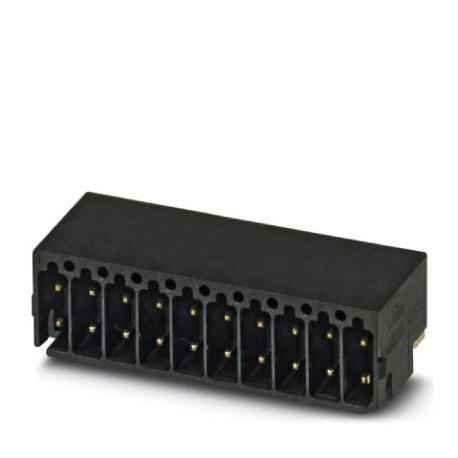

SAMPLE DMC 0,5/16-G1-2,54 SMD
SAMPLE DMC 0,5/16-G1-2,54 SMD 1859932 PHOENIX CONTACT PCB headers, nominal current: 6 A, rated voltage (III/..
$0.00USD
3910 in stock
Key Specifications
GTIN:4055626113296
Note:Made to Order (non-returnable)
Orderkey:1859932
Packing unit:5 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626113296 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1859932 |
| Packing unit | 5 pc |
| Country of origin | DE (Germany) |
| ETIM 5.0 (eCl@ss) | EC002637 |
| ETIM 6.0 (eCl@ss) | EC002637 |
| ETIM 7.0 (eCl@ss) | EC002637 |
| Color (Dimensions) | black |
| UNSPSC 13.2 (ETIM) | 39121409 |
| Custom tariff number | 85366930 |
| Minimum order quantity | 5 pc |
| Pitch (Key Commercial Data) | 2.54 mm |
| Width (Key Commercial Data) | 41.14 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 9.39 mm |
| Length (Key Commercial Data) | 12.26 mm |
| eCl@ss 5.1 (Classifications) | 27260700 |
| eCl@ss 6.0 (Classifications) | 27260700 |
| eCl@ss 7.0 (Classifications) | 27440402 |
| eCl@ss 8.0 (Classifications) | 27440402 |
| eCl@ss 9.0 (Classifications) | 27440402 |
| Range of articles (Dimensions) | DMC 0,5/..-G1-SMD |
| Nominal current IN (Dimensions) | 6 A |
| Insulating material (Dimensions) | LCP |
| Number of positions (Dimensions) | 16 |
| Dimension a (Key Commercial Data) | 38.1 mm |
| Pin spacing (Key Commercial Data) | 2.54 mm |
| Rated voltage (II/2) (Dimensions) | 160 V |
| Width [ w ] (Key Commercial Data) | 41.14 mm |
| Height [ h ] (Key Commercial Data) | 11.39 mm |
| Length [ l ] (Key Commercial Data) | 12.26 mm |
| Rated voltage (III/2) (Dimensions) | 160 V |
| Rated voltage (III/3) (Dimensions) | 32 V |
| Pin dimensions (Key Commercial Data) | 0.64 x 0.64 mm |
| Weight per Piece (excluding packing) | 2.220 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Insulating material group (Dimensions) | IIIa |
| Rated surge voltage (II/2) (Dimensions) | 2.5 kV |
| Rated surge voltage (III/2) (Dimensions) | 2.5 kV |
| Rated surge voltage (III/3) (Dimensions) | 2.5 kV |
| Connection in acc. with standard (General) | EN-VDE |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Length of the solder pin (Key Commercial Data) | 2 mm |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Dimensions) | V0 |
Product Description
Printed circuit board base housing, nominal section: 0.5 mm², color: black, nominal current: 6 A, nominal voltage (III/2): 160 V, contact surface: Gold, contact type: Male, number of potentials: 32, n
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
PCB headers, nominal current: 6 A, rated voltage (III/2): 160 V, number of positions: 16, pitch: 2.54 mm, color: black, contact surface: Gold, mounting: SMD soldering
