SACCBP-MS-12CON-M16/1,0-PVCSCO

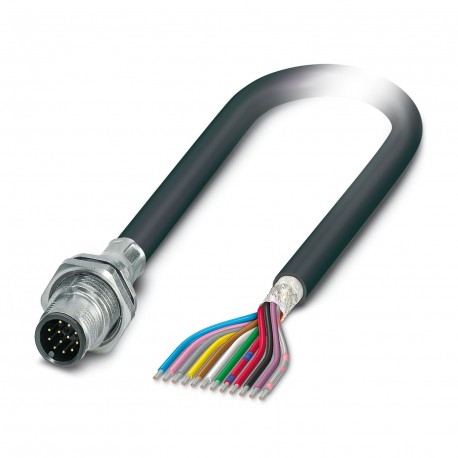

SACCBP-MS-12CON-M16/1,0-PVCSCO 1442227 PHOENIX CONTACT Flush-type connector
$51.33USD
236 in stock
Key Specifications
:• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
Coding:A
Shielded:yes
Shielding:Tinned copper braided shield
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. | |
| Coding | A |
| Shielded | yes |
| Shielding | Tinned copper braided shield |
| Cable type | PVC black |
| Head design | Pin |
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Sensor type | Universal |
| Thread type | M12 |
| Cable length | 1 m |
| Product type | Signal and power cable |
| Short symbol | PVC |
| Assembly note | Thread with flat nut |
| Mounting type | Rear mounting M16 x 1.5 Thread with flat nut |
| Overall twist | Six pairs around the filler to the core |
| Seal material | FKM |
| Article revision | 08 |
| Cable resistance | 142 Ω/km (at 20 °C) |
| Contact material | CuZn |
| Flame resistance | IEC 60332-1-2, IEC 60332-1, FT1, VW-1 |
| Head thread type | M12 |
| Other resistance | Hydrolysis and microbe resistant as per VDE 0282 section 10 |
| Connection method | Cable connection |
| Head cable outlet | straight |
| Head locking type | SPEEDCON |
| Resistance to oil | in accordance with DIN EN 60811-404 |
| Tightening torque | 3 ... 4 Nm |
| Conductor material | Tin-plated Cu litz wires |
| Contact resistance | ≤ 3 mΩ |
| Nominal current IN | 1.5 A |
| Nominal voltage UN | 30 V |
| Notes on operation | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Order information: | Lock nut is included in the scope of delivery |
| Single wire, color | white-brown, green-yellow, gray-pink, blue-red, black-violet, gray/pink-red/blue |
| Cable cross section | 6x 2x 0.14 mm² |
| Degree of pollution | 3 |
| Number of positions | 12 |
| Rated surge voltage | 0.8 kV |
| Test voltage, cable | 1500 V AC |
| Degree of protection | IP67 (When plugged in) |
| No. of cable outlets | 1 |
| Overvoltage category | II |
| Signal type/category | Universal |
| Standard designation | M12 connector |
| Insulation resistance | ≥ 100 MΩ |
| Thickness, insulation | 0.21 mm |
| External sheath, color | black RAL 9005 |
| Material, inner sheath | PVC |
| Nominal voltage, cable | 300 V |
| Outer sheath, material | PVC |
| External cable diameter | 7.00 mm ±0.03 mm |
| Optical shield covering | 85 % |
| Contact carrier material | PA 6.6 |
| Contact surface material | Au |
| Material wire insulation | PVC |
| Standards/specifications | IEC 61076-2-101 |
| Max. conductor resistance | 142 Ω/km |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Wire diameter incl. insulation | 1 mm ±0.05 mm |
| Ambient temperature (operation) | -25 °C ... 85 °C (Plug / socket) |
| Conductor structure signal line | 18x 0.10 mm |
| Flammability rating according to UL 94 | V0 |
| Smallest bending radius, fixed installation | 42 mm |
| Smallest bending radius, movable installation | 105 mm |
Product Description
Conect. plug. to be apar. poster wall, Universal, 12-pole, PVC/PVC, black RAL 9005, shielded, Male connector, straight, M12-SPEEDCON, coding: A, at free cable end, Rear mounting, M16 x 1.5, Cable conn
