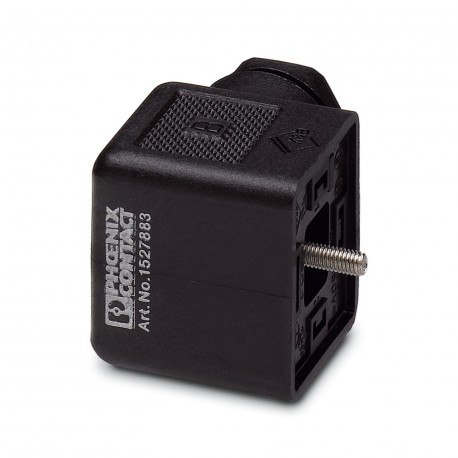

SACC-V-4CON-PG9/A
SACC-V-4CON-PG9/A 1527883 PHOENIX CONTACT Valve connectors
$4.64USD
2196 in stock
Key Specifications
GTIN:4017918980955
Orderkey:1527883
(General):TPE (Screw connection)
Catalog page:Page 110 (PC-2009)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918980955 |
| Orderkey | 1527883 |
| (General) | TPE (Screw connection) |
| Catalog page | Page 110 (PC-2009) |
| Packing unit | 1 pc |
| Country of origin | HU (Hungary) |
| Custom tariff number | 85366990 |
| (Ambient conditions) | 250 V DC |
| Sealing material (General) | NBR (Flat gasket) |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Degree of protection (Dimensions) | IP65 |
| Rated voltage (Ambient conditions) | 250 V AC |
| Status display (Ambient conditions) | No |
| Weight per Piece (excluding packing) | 25.300 g |
| Material housing valve plug (General) | PA6 |
| Valve plug contact material (General) | CuSn |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Connection method (Ambient conditions) | Screw connection |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| External diameter (Key Commercial Data) | 6 mm ... 8 mm |
| Degree of pollution (Ambient conditions) | 3 |
| Number of positions (Ambient conditions) | 4 |
| Overvoltage category (Ambient conditions) | II |
| Insulation resistance (Ambient conditions) | ≥ 100 MΩ |
| Connection in acc. with standard (Material) | UL |
| Rated current at 40°C (Ambient conditions) | 10 A |
| Ambient temperature (operation) (Dimensions) | -30 °C ... 100 °C (connector) |
| Conductor cross section (Ambient conditions) | 0.34 mm² ... 1.5 mm² |
| Valve plug contact insert material (General) | PA6 |
| Valve plug contact surface material (General) | Ni |
| Conductor cross section AWG (Ambient conditions) | 22 ... 16 |
| Flammability rating according to UL 94 (General) | HB |
| Insertion/withdrawal cycles (Ambient conditions) | 50 (Valve connector) |
| Flammability rating according to UL 94 (Material) | HB |
| Protective circuit/component (Ambient conditions) | unwired |
Product Description
Valve Connector, Universal, 4-Pole, Valve Connector A, Screw Connection, Pg9 Cable Gland, Cable Outer Diameter 6 mm ... 8 mm
