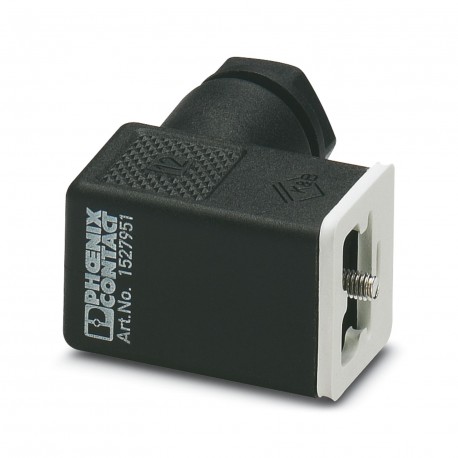

SACC-V-3CON-PG7/C
SACC-V-3CON-PG7/C 1527951 PHOENIX CONTACT Valve connectors
$0.00USD
3391 in stock
Key Specifications
:250 V DC
Shielded:no
Head design:Valve connector
Product type:Valve connectors
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 250 V DC | |
| Shielded | no |
| Head design | Valve connector |
| Product type | Valve connectors |
| Assembly note | NOTE:Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties. |
| Seal material | NBR |
| Status display | no |
| Contact material | CuZn |
| Head thread type | C (8 mm) |
| Outside diameter | 6 mm ... 8 mm |
| Connection method | Screw connection |
| Contact resistance | ≤ 15 mΩ |
| Nominal current IN | 6 A |
| Nominal voltage UN | 250 V AC |
| Protective circuit | unwired |
| Degree of pollution | 3 |
| Number of positions | 3 |
| Pg screw connection | Pg9 |
| Degree of protection | IP65 |
| No. of cable outlets | 1 |
| Overvoltage category | II |
| Insulation resistance | ≥ 100 MΩ |
| Status display present | No |
| Conductor cross section | 0.34 mm² ... 1.5 mm² |
| Contact surface material | Ni |
| Insertion/withdrawal cycles | 50 (Valve connector) |
| Material housing valve plug | PA 6 |
| Connection cross section AWG | 22 ... 16 |
| Ambient temperature (operation) | -30 °C ... 100 °C (valve plug) |
| Valve plug contact insert material | PA 6 |
| Flammability rating according to UL 94 | HB |
Product Description
Valve connector, 3-pole, Valve connector C (8mm), Screw connection, Pg9 cable gland, cable outer diameter 6 mm... 8 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
