SACC-MINMR-4CON-PG13

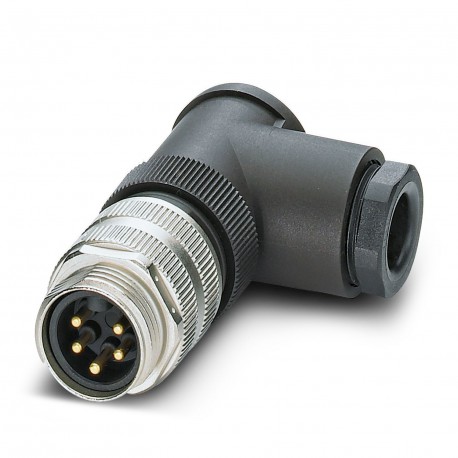

SACC-MINMR-4CON-PG13 1414585 PHOENIX CONTACT Connector SACC-MINMR-4CON-PG13 1414585
$0.00USD
3655 in stock
Key Specifications
:The connector pin assignment can be rotated 45° to the cable outlet
Coding:A
Length:72 mm
Shielded:no
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| The connector pin assignment can be rotated 45° to the cable outlet | |
| Coding | A |
| Length | 72 mm |
| Shielded | no |
| Head design | Plug |
| Cable outlet | angled |
| Product type | Circular connector (cable-side) |
| Assembly note | NOTE:Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties. |
| Contact material | CuZn |
| Head thread type | 7/8"-16UNF |
| Outside diameter | 10 mm ... 12 mm |
| Connection method | Screw connection |
| Head cable outlet | angled |
| Tightening torque | 0.8 Nm (7/8" connectors) |
| Contact resistance | ≤ 5 mΩ |
| Nominal current IN | 9 A |
| Nominal voltage UN | 300 V |
| Degree of pollution | 3 |
| Dimensional drawing | |
| Number of positions | 4 |
| Pg screw connection | Pg13,5 |
| Degree of protection | IP67 |
| No. of cable outlets | 1 |
| Overvoltage category | II |
| Insulation resistance | ≥ 100 MΩ |
| Material of grip body | PBT |
| Connection cross section | 0.34 mm² ... 1.5 mm² |
| Contact carrier material | PUR/PA 6.6 |
| Contact surface material | Au |
| Insertion/withdrawal cycles | ≥ 100 |
| Connection cross section AWG | 22 ... 16 |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Ambient temperature (operation) | -25 °C ... 85 °C (Plug / socket) |
| Flammability rating according to UL 94 | HB |
| Stripping length of the individual wire | 7 mm |
Product Description
Connector, 4-pole, 7/8"-16UNF angled male connector, A-coded, Screw connection, knurling material: Zinc die-casting, nickel-plated, Pg13.5 cable gland, cable outer diameter 10 mm ... 12 mm, Contact 4
