SACC-M12MSD-4CT SH PN

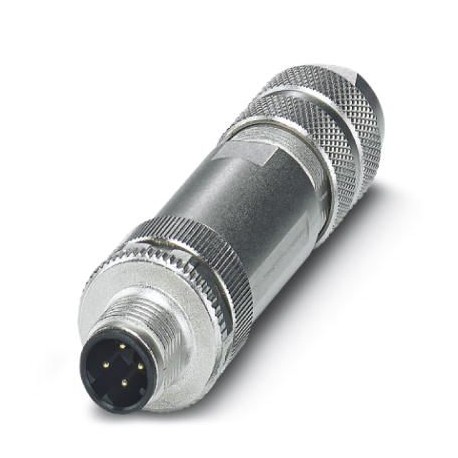

SACC-M12MSD-4CT SH PN 1411046 PHOENIX CONTACT Bus system connector
$0.00USD
3290 in stock
Key Specifications
GTIN:4046356920216
Orderkey:1411046
(General):NBR (Cable clamping)
Catalog page:Page 185 (NTK-2014)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356920216 |
| Orderkey | 1411046 |
| (General) | NBR (Cable clamping) |
| Catalog page | Page 185 (NTK-2014) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| (Ambient conditions) | 1 Nm (Pressure nut with coupling sleeve) |
| Note (Ambient conditions) | Order crimp contacts separately |
| Material, knurls (General) | Zinc die-cast, nickel-plated |
| Sealing material (General) | FPM (O-ring) |
| Coding (Ambient conditions) | D - data |
| Torque (Ambient conditions) | 0.6 Nm (M12 knurl) |
| Length (Key Commercial Data) | 73 mm |
| Material of grip body (General) | Zinc die-cast, nickel-plated |
| Standard designation (Material) | M12 connector |
| Standards/regulations (Material) | IEC 61076-2-101 |
| Degree of protection (Dimensions) | IP67 |
| Contact carrier material (General) | PA |
| Rated voltage (Ambient conditions) | 60 V DC |
| Status display (Ambient conditions) | No |
| Weight per Piece (excluding packing) | 22.220 g |
| Connection method (Ambient conditions) | Crimp connection |
| Diameter housing (Key Commercial Data) | 20.2 mm |
| Degree of pollution (Ambient conditions) | 3 |
| Number of positions (Ambient conditions) | 4 |
| Overvoltage category (Ambient conditions) | II |
| Signal type/category (Ambient conditions) | PROFINET CAT5 (on the basis of IEC 11801) |
| Insulation resistance (Ambient conditions) | ≥ 10 GΩ |
| Standards/regulations (Ambient conditions) | M12 connector IEC 61076-2-101 |
| Rated current at 40°C (Ambient conditions) | 4 A |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 85 °C (Plug / socket) |
| Conductor cross section (Ambient conditions) | 0.34 mm² ... 0.5 mm² |
| External cable diameter (Key Commercial Data) | 5 mm ... 8 mm |
| Conductor cross section AWG (Ambient conditions) | 22 ... 20 |
| Flammability rating according to UL 94 (General) | HB |
| Insertion/withdrawal cycles (Ambient conditions) | ≥ 100 |
| Flammability rating according to UL 94 (Material) | HB |
Product Description
Data connectors, PROFINET CAT5, 4-pole, shielded, M12 straight male connector, Coding: D, crimped connection, knurling material: Zinc die-cast, nickel-plated, cable outer diameter 5 mm ... 8 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
