SACC-M12MS-8QO SH ETH

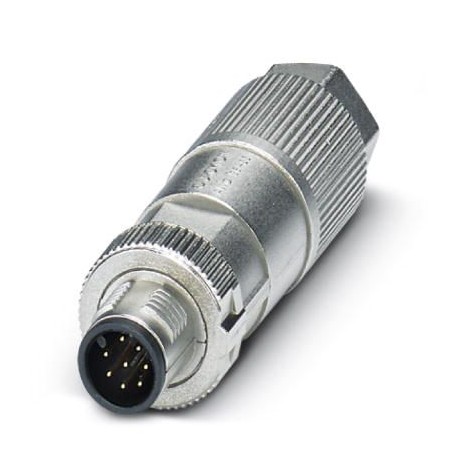

SACC-M12MS-8QO SH ETH 1421679 PHOENIX CONTACT Connector
$0.00USD
3950 in stock
Key Specifications
GTIN:4055626276816
Orderkey:1421679
Catalog page:Page 345 (C-2-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626276816 |
| Orderkey | 1421679 |
| Catalog page | Page 345 (C-2-2017) |
| Packing unit | 1 pc |
| (Dimensions) | IP67 |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| (Ambient conditions) | 5 Nm (Pressure nut) |
| Contact material (General) | CuSn |
| Material, knurls (General) | Zinc die-cast, nickel-plated |
| Sealing material (General) | NBR |
| Coding (Ambient conditions) | A - standard |
| Torque (Ambient conditions) | M12 knurl |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Length (Key Commercial Data) | 58 mm |
| Material of grip body (General) | Zinc die-cast, nickel-plated |
| Standard designation (Material) | M12 connector |
| Standards/regulations (General) | PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, R24, and R26 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
| Standards/regulations (Material) | according to IEC 61076-2-101 |
| Degree of protection (Dimensions) | IP65 |
| Contact carrier material (General) | PA 6.6 |
| Contact surface material (General) | Ni/Au |
| Rated voltage (Ambient conditions) | 48 V AC |
| Status display (Ambient conditions) | No |
| Weight per Piece (excluding packing) | 40.700 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection method (Ambient conditions) | Insulation displacement connection |
| Diameter housing (Key Commercial Data) | 19 mm |
| Degree of pollution (Ambient conditions) | 3 |
| Number of positions (Ambient conditions) | 8 |
| Overvoltage category (Ambient conditions) | III |
| Signal type/category (Ambient conditions) | Ethernet CAT5 (on the basis of IEC 11801), 1 Gbps |
| Insulation resistance (Ambient conditions) | ≥ 100 MΩ |
| Standards/regulations (Ambient conditions) | M12 connector according to IEC 61076-2-101 |
| Ambient temperature (assembly) (Dimensions) | -5 °C ... 50 °C |
| Rated current at 40°C (Ambient conditions) | 2 A |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 85 °C (Plug / socket) |
| Conductor cross section (Ambient conditions) | 0.14 mm² ... 0.34 mm² (flexible) |
| Wrench size, union nut (Key Commercial Data) | 15 mm |
| External cable diameter (Key Commercial Data) | 5 mm ... 9.7 mm |
| Wire insulation material (Ambient conditions) | PVC / PE / PP / rubber |
| Conductor cross section AWG (Ambient conditions) | 26 ... 22 (flexible) |
| Flammability rating according to UL 94 (General) | V0 |
| Insertion/withdrawal cycles (Ambient conditions) | ≥ 100 |
| Flammability rating according to UL 94 (Material) | V0 |
| Stripping length of the sheath (Key Commercial Data) | ≥ 80 mm |
| Wire diameter including insulation (Ambient conditions) | 0.75 mm ... 2 mm |
| Frequency of connections between conductors of the same cross section (Ambient conditions) | 10 |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter (Ambient conditions) | Class 2-6 |
Product Description
Data connectors, CAT5 Ethernet (1 GBit/s), 8-pole, halogen-free, shielded, M12 straight male connector, A, Offset connection. insulation, knurling material: Zinc die-casting, nickel-plated, wire outer
