SACC-M12FS-8CT-CM SH

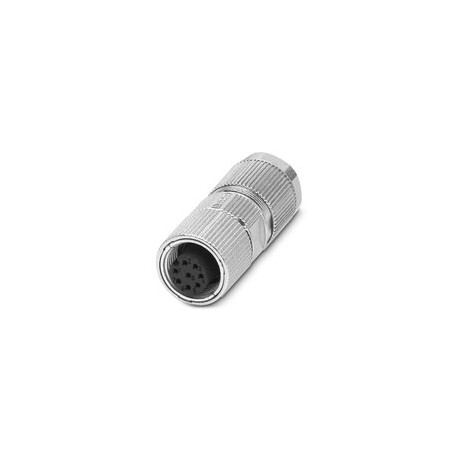

SACC-M12FS-8CT-CM SH 1319942 PHOENIX CONTACT Connector, Universal, 8-pole, shielded, M12 straight connection..
$26.61USD
411 in stock
Key Specifications
:4 Nm (Pressure nut with coupling sleeve)
Coding:A
Length:42 mm
General:NOTE:Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties.
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 4 Nm (Pressure nut with coupling sleeve) | |
| Coding | A |
| Length | 42 mm |
| General | NOTE:Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
| Shielded | yes |
| Head design | Socket |
| Sensor type | Universal |
| Cable outlet | straight |
| Product type | Circular connector (cable-side) |
| Seal material | FKM |
| Diameter housing | 16 mm |
| Head thread type | M12 |
| Outside diameter | 4.5 mm ... 7.5 mm |
| Connection method | Crimp connection |
| Head cable outlet | straight |
| Tightening torque | 0.4 Nm (M12 knurl) |
| Nominal current IN | 2 A |
| Nominal voltage UN | 30 V AC |
| Degree of pollution | 3 |
| Dimensional drawing | |
| Number of positions | 8 |
| Rated surge voltage | 0.8 kV |
| Degree of protection | IP65 |
| No. of cable outlets | 1 |
| Overvoltage category | II |
| Signal type/category | Universal |
| Standard designation | M12 connector |
| Insulation resistance | ≥ 100 MΩ |
| Material of grip body | Zinc die-cast, nickel-plated |
| Wrench size, union nut | 15 mm |
| Connection cross section | 0.14 mm² ... 0.34 mm² (flexible) |
| Standards/specifications | IEC 61076-2-101 |
| Wrench size, counter nut | 14 mm |
| Insertion/withdrawal cycles | ≥ 100 |
| Connection cross section AWG | 26 ... 22 (flexible) |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Ambient temperature (operation) | -40 °C ... 85 °C (Plug / socket) |
| Flammability rating according to UL 94 | V0 |
| Stripping length of the individual wire | 4 mm +0,5 mm |
Product Description
Connector, Universal, 8-position, shielded, Socket straight M12, coding: A, Crimp connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 4.5 mm ... 7.5 mm, without crimp con
