SACC-M12FRB-2SC SH PB

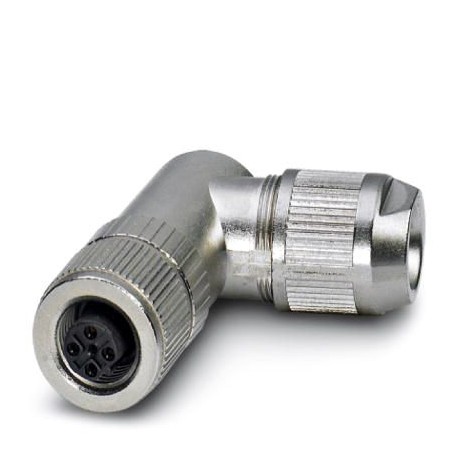

SACC-M12FRB-2SC SH PB 1539224 PHOENIX CONTACT Bus system connector
$0.00USD
4327 in stock
Key Specifications
GTIN:4046356084215
Note:Made to Order (non-returnable)
Orderkey:1539224
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356084215 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1539224 |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| (Ambient conditions) | The wires can be connected both with ferrules and without ferrules |
| Contact material (General) | CuSn |
| Material, knurls (General) | Nickel-plated brass |
| Sealing material (General) | NBR |
| Coding (Ambient conditions) | B-coded |
| Torque (Ambient conditions) | 0.4 Nm (M12 knurl) |
| Standard designation (Cable) | M12 connector |
| Standards/regulations (Cable) | IEC 61076-2-101 |
| Material of grip body (General) | Zinc die-cast, nickel-plated |
| Degree of protection (Dimensions) | IP67 |
| Contact carrier material (General) | PA 6.6 |
| Contact surface material (General) | Ni/Au |
| Rated voltage (Ambient conditions) | 60 V DC |
| Standards/specifications (Material) | M12 connector IEC 61076-2-101 |
| Status display (Ambient conditions) | No |
| Weight per Piece (excluding packing) | 49.800 g |
| Connection method (Ambient conditions) | Spring-cage connection |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Connection in acc. with standard (Cable) | CUL |
| Degree of pollution (Ambient conditions) | 3 |
| Number of positions (Ambient conditions) | 2 |
| Overvoltage category (Ambient conditions) | II |
| Assembly instructions (Ambient conditions) | The connector pin assignment can be rotated 45° to the cable outlet |
| Insulation resistance (Ambient conditions) | ≥ 100 MΩ |
| Standards/regulations (Ambient conditions) | M12 connector IEC 61076-2-101 |
| Rated current at 40°C (Ambient conditions) | 4 A |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 85 °C (Plug / socket) |
| Conductor cross section (Ambient conditions) | 0.14 mm² ... 0.5 mm² |
| External cable diameter (Key Commercial Data) | 4 mm ... 8 mm |
| Flammability rating according to UL 94 (Cable) | V0 |
| Conductor cross section AWG (Ambient conditions) | 26 ... 20 |
| Flammability rating according to UL 94 (General) | V0 |
| Insertion/withdrawal cycles (Ambient conditions) | ≥ 100 |
| Stripping length of the sheath (Key Commercial Data) | 35 mm |
| Stripping length of the individual wire (Key Commercial Data) | 10 mm |
