SACC-M12FR-5PL M

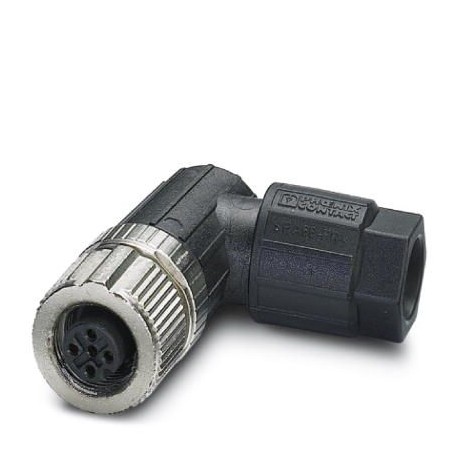

SACC-M12FR-5PL M 1424653 PHOENIX CONTACT Steckverbinder
$0.00USD
4985 in stock
Key Specifications
GTIN:4055626375809
Orderkey:1424653
(General):PBT: Fire protection in rail vehicles - requirement sets R22, R23, R24, and R26 acc. to DIN EN 45545-2 (Risk level HL1 - HL2, R26: HL3)
Catalog page:Page 18 (C-2-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626375809 |
| Orderkey | 1424653 |
| (General) | PBT: Fire protection in rail vehicles - requirement sets R22, R23, R24, and R26 acc. to DIN EN 45545-2 (Risk level HL1 - HL2, R26: HL3) |
| Catalog page | Page 18 (C-2-2017) |
| Packing unit | 1 pc |
| (Dimensions) | IP67 |
| Country of origin | DE (Germany) |
| Custom tariff number | 85366990 |
| (Ambient conditions) | The wires can be connected both with ferrules and without ferrules |
| Contact material (General) | CuSn |
| Material, knurls (General) | Zinc die-cast, nickel-plated |
| Sealing material (General) | NBR |
| Coding (Ambient conditions) | A - standard |
| Torque (Ambient conditions) | 0.4 Nm (M12 knurl) |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Length (Key Commercial Data) | 49 mm |
| Material of grip body (General) | PA 6.6 |
| Standard designation (Material) | Shock, vibration |
| Standards/regulations (General) | PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, R24, and R26 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
| Standards/regulations (Material) | EN 50155:2001 |
| Degree of protection (Dimensions) | IP65 |
| Contact carrier material (General) | PA 6.6 |
| Contact surface material (General) | Ni/Au |
| Rated voltage (Ambient conditions) | 48 V AC |
| Status display (Ambient conditions) | No |
| Weight per Piece (excluding packing) | 22.220 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Color handle area (Ambient conditions) | black |
| Connection method (Ambient conditions) | Push-in connection |
| Diameter housing (Key Commercial Data) | 19 mm |
| Degree of pollution (Ambient conditions) | 3 |
| Number of positions (Ambient conditions) | 5 |
| Overvoltage category (Ambient conditions) | II |
| Assembly instructions (Ambient conditions) | The connector pin assignment can be rotated 45° to the cable outlet |
| Insulation resistance (Ambient conditions) | ≥ 100 MΩ |
| Standards/regulations (Ambient conditions) | M12 connector IEC 61076-2-101 |
| Rated current at 40°C (Ambient conditions) | 4 A |
| Additional material specifications (General) | PBT (Pressure nut, weight: 2.36 g) |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 85 °C (Plug / socket) |
| Conductor cross section (Ambient conditions) | 0.14 mm² ... 0.75 mm² (without ferrule) |
| External cable diameter (Key Commercial Data) | 4 mm ... 8 mm |
| Conductor cross section AWG (Ambient conditions) | 26 ... 18 (without ferrule) |
| Flammability rating according to UL 94 (General) | V0 |
| Insertion/withdrawal cycles (Ambient conditions) | ≥ 100 |
| Flammability rating according to UL 94 (Material) | V0 |
| Stripping length of the sheath (Key Commercial Data) | 31 mm |
| Stripping length of the individual wire (Key Commercial Data) | 8 mm |
Product Description
Connector, Universal, 5-pole, unshielded, Female angled connection M12, coded A, Spring connection push lock, knurling material: Zinc die-cast, nickel-plated, cable outer diameter 4 mm ... 8 mm
