In Stock Hot Product
SACC-M12-SCO PLUG L90

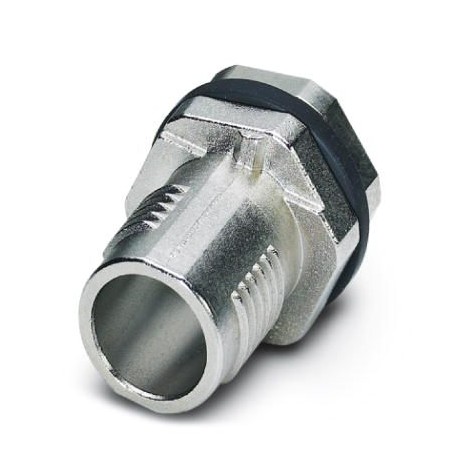

SACC-M12-SCO PLUG L90 1436709 PHOENIX CONTACT Housing screw connection
$5.15USD
1980 in stock
Key Specifications
GTIN:4046356438773
Orderkey:1436709
(Material):-25 °C ... 85 °C (cable, flexible installation)
Catalog page:Page 258 (C-2-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356438773 |
| Orderkey | 1436709 |
| (Material) | -25 °C ... 85 °C (cable, flexible installation) |
| Catalog page | Page 258 (C-2-2013) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| Material (General) | Zinc die-cast (nickel-plated) |
| Custom tariff number | 79070000 |
| (Key Commercial Data) | -40 °C ... 85 °C (without mechanical actuation) |
| Minimum order quantity | 10 pc |
| Sealing material (General) | FKM |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Standards/regulations (Cable) | IEC 61076-2-101 |
| Mounting type (Ambient conditions) | M12 x 1 |
| Standards/specifications (Material) | IEC 61076-2-101 |
| Weight per Piece (excluding packing) | 6.300 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Ambient temperature (operation) (Material) | -40 °C ... 85 °C (cable, fixed installation) |
| Degree of protection (Key Commercial Data) | IP67 (correctly plugged in and locked) |
| Standards/regulations (Ambient conditions) | IEC 61076-2-101 |
| Ambient temperature (operation) (Key Commercial Data) | -25 °C ... 85 °C (Plug / socket) |
Product Description
Housing cable gland, Front wall mounting, M12 x 1, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) art.code: 1239632
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
