SACC-M12-SCO NUT

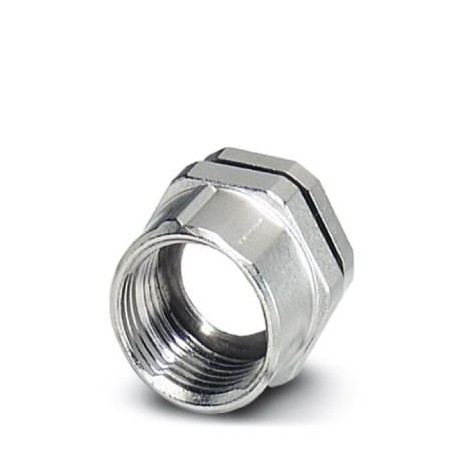

SACC-M12-SCO NUT 1552243 PHOENIX CONTACT Housing screw connection
$3.54USD
2870 in stock
Key Specifications
GTIN:4046356162111
Orderkey:1552243
Catalog page:Page 258 (C-2-2013)
Packing unit:60 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356162111 |
| Orderkey | 1552243 |
| Catalog page | Page 258 (C-2-2013) |
| Packing unit | 60 pc |
| Country of origin | DE (Germany) |
| Material (General) | Zinc die-cast (nickel-plated) |
| Custom tariff number | 79070000 |
| (Key Commercial Data) | -40 °C ... 85 °C (without mechanical actuation) |
| Minimum order quantity | 60 pc |
| Note (Ambient conditions) | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Material, knurls (General) | Nickel-plated brass |
| Sealing material (General) | EPDM |
| Torque (Ambient conditions) | 1.5 Nm ... 2 Nm (Installation-side) |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Standard designation (Cable) | M12 connector |
| Standards/regulations (Cable) | IEC 61076-2-101 |
| Mounting type (Ambient conditions) | Front mounting M12 x 1 |
| Standards/specifications (Material) | M12 connector IEC 61076-2-101 |
| Weight per Piece (excluding packing) | 6.390 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Degree of protection (Key Commercial Data) | IP67 (correctly plugged in and locked) |
| Standards/regulations (Ambient conditions) | M12 connector IEC 61076-2-101 |
| Insertion/withdrawal cycles (Ambient conditions) | > 100 |
| Ambient temperature (operation) (Key Commercial Data) | -25 °C ... 85 °C (Plug / socket) |
Product Description
Housing cable gland, Connecting female, M12-SPEEDCON, Front wall mounting, M12 x 1, Alternative product according to RoHS II without exception 6c (Pb< 0.1%) 1237399
