SACC-M 8MS-4PCON CX

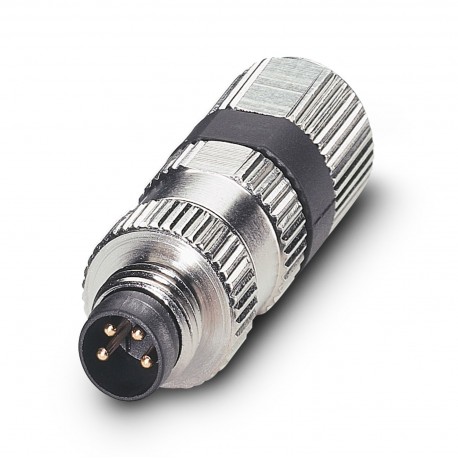

SACC-M 8MS-4PCON CX 1404598 PHOENIX CONTACT Sensor/actuator connector, male, straight, 4-pos., M8, Piercecon
$0.00USD
4308 in stock
Key Specifications
GTIN:4046356703239
Orderkey:1404598
(Drawings):
Packing unit:1
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356703239 |
| Orderkey | 1404598 |
| (Drawings) | |
| Packing unit | 1 |
| UNSPSC 11 (ETIM) | 39121413 |
| ETIM 3.0 (eCl@ss) | EC002062 |
| ETIM 4.0 (eCl@ss) | EC002062 |
| ETIM 5.0 (eCl@ss) | EC002062 |
| ETIM 6.0 (eCl@ss) | EC002062 |
| UNSPSC 13.2 (ETIM) | 39121413 |
| UNSPSC 18.0 (ETIM) | 39121413 |
| UNSPSC 19.0 (ETIM) | 39121413 |
| UNSPSC 20.0 (ETIM) | 39121413 |
| UNSPSC 21.0 (ETIM) | 39121413 |
| UNSPSC 6.01 (ETIM) | 30211824 |
| UNSPSC 12.01 (ETIM) | 39121413 |
| Custom tariff number | 85366990 |
| UNSPSC 7.0901 (ETIM) | 39121413 |
| (Ambient conditions) | 0.2 Nm (M8 knurl) |
| Note (Ambient conditions) | NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
| Contact material (General) | CuZn |
| Material, knurls (General) | Nickel-plated brass |
| Sealing material (General) | NBR |
| Coding (Ambient conditions) | A - standard |
| Torque (Ambient conditions) | 0.5 Nm (Pressure nut with coupling sleeve) |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| eCl@ss 4.0 (Classifications) | 27140800 |
| eCl@ss 4.1 (Classifications) | 27140800 |
| eCl@ss 5.0 (Classifications) | 27143400 |
| eCl@ss 5.1 (Classifications) | 27143400 |
| eCl@ss 6.0 (Classifications) | 27279200 |
| eCl@ss 7.0 (Classifications) | 27440104 |
| eCl@ss 8.0 (Classifications) | 27440104 |
| eCl@ss 9.0 (Classifications) | 27440102 |
| Material of grip body (General) | PA 6.6 |
| eCl@ss 10.0.1 (Classifications) | 27440102 |
| Standards/specifications (Cable) | M8 connector IEC 61076-2-104 |
| Degree of protection (Dimensions) | IP68 |
| Contact carrier material (General) | PA 6.6 |
| Contact surface material (General) | Ni/Au |
| External cable diameter (Drawings) | 3 mm ... 5 mm |
| Rated voltage (Ambient conditions) | 30 V |
| Standards/specifications (Material) | M8 connector IEC 61076-2-104 |
| Status display (Ambient conditions) | No |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Connection method (Ambient conditions) | Piercecon®fast connection |
| REACh SVHC (Standards and Regulations) | |
| Degree of pollution (Ambient conditions) | 3 |
| Number of positions (Ambient conditions) | 4 |
| Overvoltage category (Ambient conditions) | II |
| Stripping length of the sheath (Drawings) | 35 mm |
| Insulation resistance (Ambient conditions) | ≥ 100 MΩ |
| Standards/regulations (Ambient conditions) | M8 connector IEC 61076-2-104 |
| Rated current at 40°C (Ambient conditions) | 4 A |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 85 °C (Plug / socket) |
| Conductor cross section (Ambient conditions) | 0.14 mm² ... 0.38 mm² |
| Flammability rating according to UL 94 (Cable) | V0 |
| Conductor cross section AWG (Ambient conditions) | 22 ... 26 |
| Flammability rating according to UL 94 (General) | V0 |
| Insertion/withdrawal cycles (Ambient conditions) | ≥ 100 |
| Wire diameter including insulation (Ambient conditions) | 1 mm ... 1.3 mm (Black wire clamping for 0.14 mm² ... 0.25 mm²) |
| Functional drawinga = cut flushb = codingWhen assembled, the coding marks must line up. (Drawings) |
Product Description
Connector for sensors/actuators, male, straight, 4-pole, M8, Piercecon®, knurled metal, cable diameter max. 5 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Functional drawinga = cut flushb = codingWhen assembled, the coding marks must line up.
