SACC-FP-M-M12/PRESS SMD PP

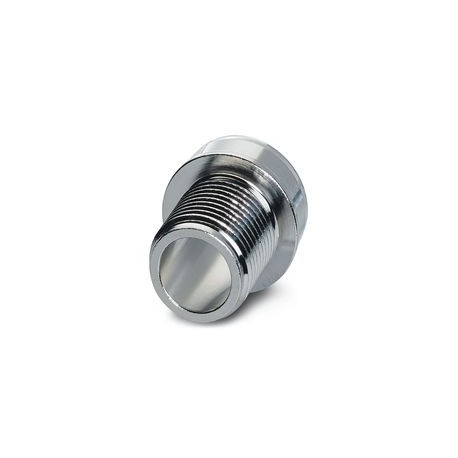

SACC-FP-M-M12/PRESS SMD PP 1454496 PHOENIX CONTACT Housing Cable Gland, Plug, M12, Front Mount, SMD
$4.80USD
2131 in stock
Key Specifications
:IP67, when in locked state
Note:In line with
General:The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Head design:Pin
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| IP67, when in locked state | |
| Note | In line with |
| General | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
| Head design | Pin |
| Thread type | M12 |
| Product type | Panel mounting base |
| Mounting type | Front mounting Press-in mounting |
| Head thread type | M12 |
| Connection method | SMD |
| Cross section AWG | (converted acc. to IEC) |
| Head locking type | Push-Pull |
| Degree of protection | IP65/IP67 (correctly plugged in and locked) |
| Standard designation | M12 connector |
| Assembly instructions | Press-in mounting |
| Standards/specifications | IEC 61076-2-010 |
| Insertion/withdrawal cycles | > 100 |
| Material for screw connection | Brass, nickel-plated |
| Ambient temperature (operation) | -25 °C ... 85 °C (Plug / socket) |
| Degree of protection (when plugged in) | IP65/IP67 (correctly plugged in and locked) |
Product Description
Housing screw connection, Pin, M12-Push-Pull, Front mounting, SMD
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
